Description

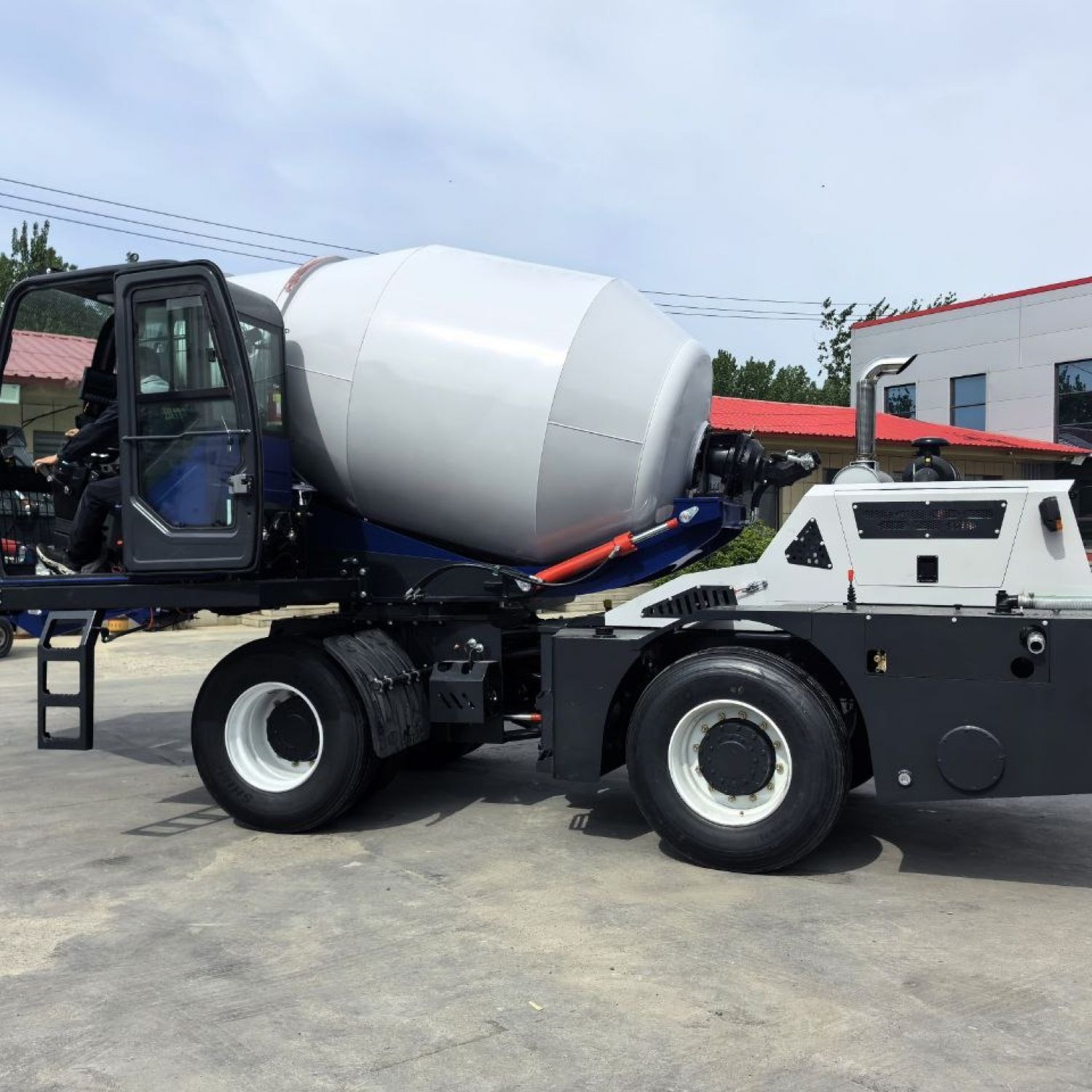

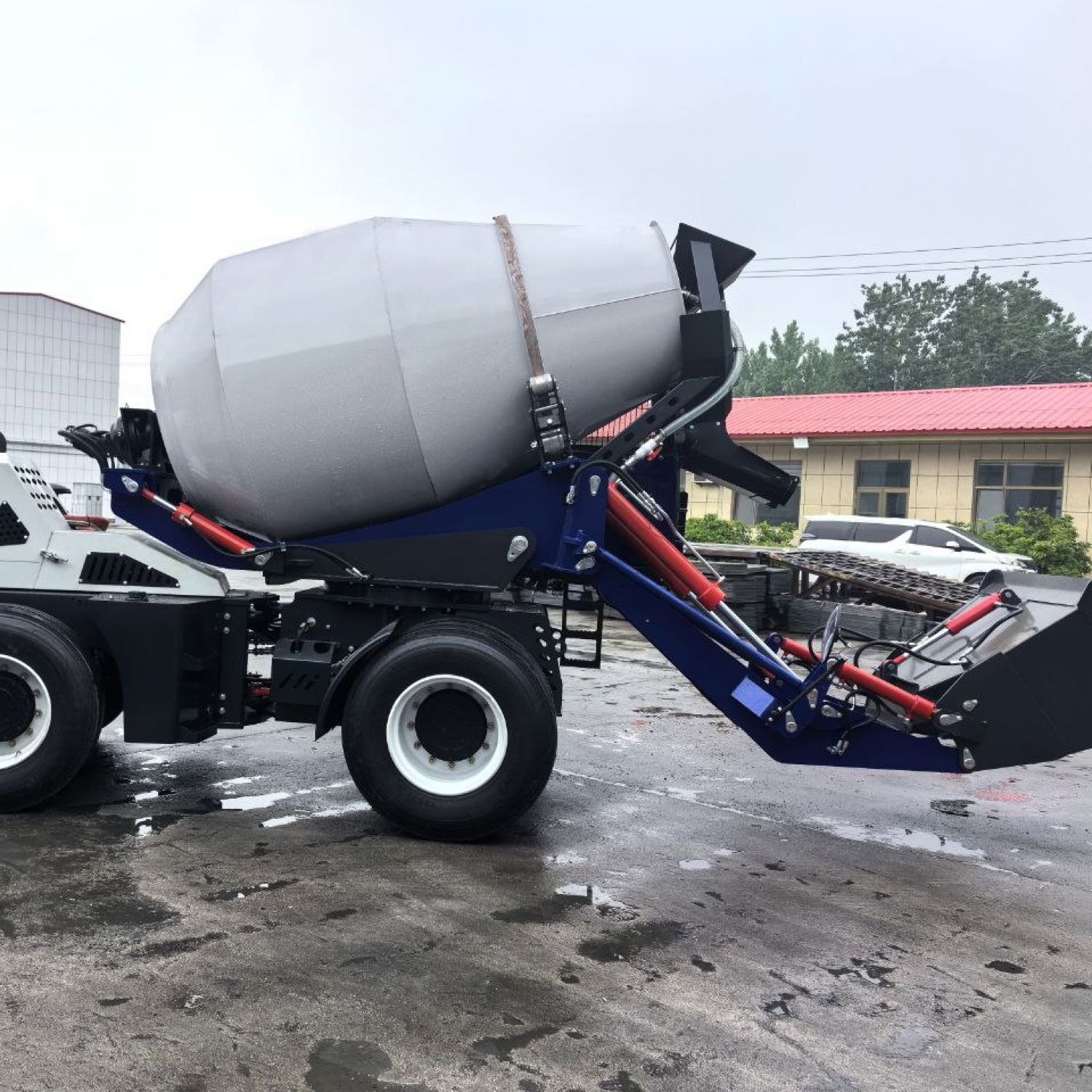

MODEL JBC 1.6 E
ENGINE
Model
YN27GBZ
Type
diesel, 2.7 l, 4-cylinder in-line, turbocharged and water-cooled, dry air filter
Injection
direct with mechanical control
Rated power
55 kW (75 hp)
Maximum torque
237 Nm at 2000 rpm
Emission standard
Euro II
CHASSIS
Structure
Articulated steering
Gearbox
Gearbox Automatic, 4F + 4R offset
Steering wheels
2 steering wheels, with dual-load power steering
Drive wheels
4 × 4 Rear axle swinging (± 28 °) with planetary gears
Brakes
Inner hub and emergency brakes acting on 4 wheels, activated by mini servo pump on independent dual circuit. Parking brake with negative pressure, with inner wheel disks on the front axle. Tires
Off-road type with steel cord, 20.5-16-12PR, maximum load 2540 kg (450 kPa)
LOADING
Hopper capacity
270 l
Number of shovel loadings for a full drum
about 6 times
Weighing system
Lifting arm is equipped with high-precision automatic weighing device
MIXING AND UNLOADING
Mixing volume
1.6 m3
Geometric volume
2.9 m3
Concrete productivity
1.6 m3 / batch, 6.4-8 m3 / hour
Drum rotation speed
15 rpm
Drum rotation angle
270 ° The reaction frame, mounted on a heavy-duty ball seat, can rotate 180 degrees hydraulically and be automatically locked by hydraulic brakes.
Chute
The removable chute allows direct discharge through the hopper. 2 chute extensions are supplied with the truck. The chute can be rotated 180 degrees using a manually adjustable handle. ELECTRICAL SYSTEM
Generator
28V-500W (18A)
Battery
2 x 12V - 60Ah (272A)
WATER SYSTEM
90l/min (Self-priming hydraulic water pump)
Water tank capacity
2x230l
Water pump
Self-priming volumetric pump 24V, high pressure pump equipped for truck wash
HYDRAULIC SYSTEM
Maximum flow
20/50l/min
Maximum pressure
16MPa
Joystick control
Multifunctional joystick with 3 handles
Heat exchanger
Aluminum
VEHICLE
Travel speed
forward: 0-7km/h, 7-20km/h,
backward: 0-7km/h, 7-20 km / h
Overall dimensions
(L × W × H) 6030 mm × 2240 mm × 2750 mm (total height 3400 mm)
WEIGHT
Working weight
5500 kg
Loading capacity
3840 kg
Max. gross weight
9340 kg
CAB
Type
Closed cab, inclined front glass, comfortable seats with flexible suspension and adjustable height
Air conditioning
Air conditioning cooling and heating
