Description

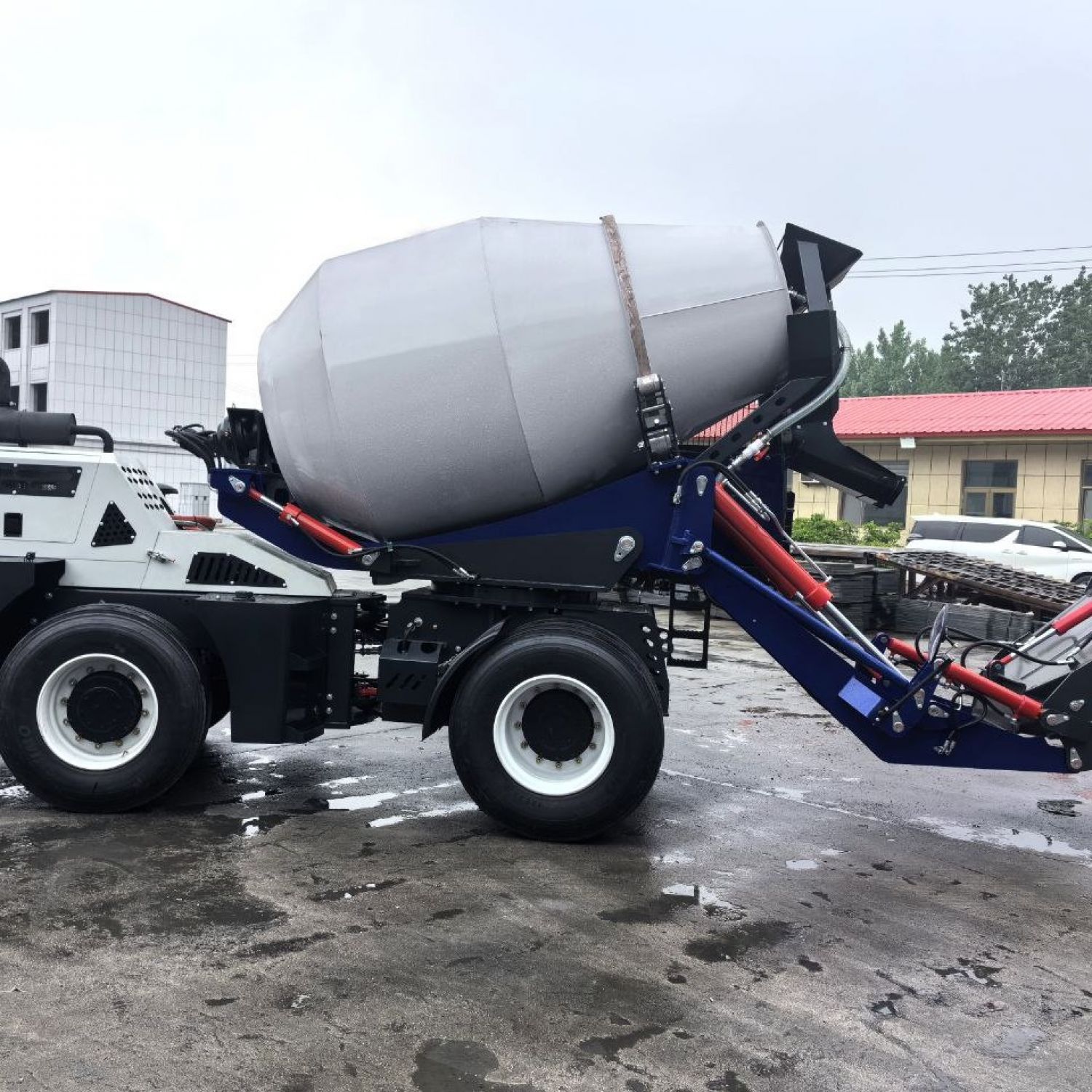

MODEL JBC 3.0
ENGINE
Model YCD4J22G
Type diesel, 4.33 l, 4-cylinder in-line, turbocharged and water-cooled, dry air filter
Direct injection with mechanical control
Rated power 85 kW (116 hp) at 2400 rpm
Maximum torque 390 Nm at 2800 rpm
Emission standard Euro II
CHASSIS
Structure Articulated steering
Gearbox Automatic, 4F + 4R shift
Steering wheels 2 steering wheels, with dual-load power steering
Drive wheels 4 × 4 Rear axle swinging (± 28 °) with planetary reduction gears
Brakes Inner hub and emergency brakes acting on 4 wheels, activation by mini servo pump on independent dual-circuit system. Negative pressure parking brake with internal wheel discs on the front axle. Off-road steel cord tires, 15.5/65-18-14 PR, maximum load 2925 kg (350 kPa)
LOADING
Hopper capacity 700 l
Number of shovel loadings for a full drum about 5 times
Weighing system The lifting arm is equipped with a high-precision automatic weighing device
MIXING AND UNLOADING
Mixing volume 3.5 m3
Geometric volume 5.6 m3
Concrete productivity 3.5 m3 / batch, 12-15 m3 / hour
Drum rotation speed 15 rpm
Drum rotation angle 180 ° The reaction frame, mounted on a heavy-duty ball seat, can rotate 180 degrees hydraulically and be automatically locked by hydraulic brakes.
Chute The removable chute ensures direct unloading through the hopper. 2 pcs. Gutter extensions are supplied with the truck. The gutter can be rotated 180 degrees using a manually adjustable handle. ELECTRICAL SYSTEM
Generator 28V-1500W (53.5A)
Battery 2 x 12V-60Ah (272A)
WATER SYSTEM 90L/min (Self-priming hydraulic water pump)
Water tank capacity 2 x 410L
Water pump Self-priming volumetric pump 24V, high pressure pump equipped for truck wash
HYDRAULIC SYSTEM
Maximum flow 63/50L/min
Maximum pressure 16MPa
Joystick control Multifunctional joystick with 3 handles
Heat exchanger Aluminum
VEHICLE
Forward speed: 0-7km/h, 7-20km/h, 20-30km/h Backward: 0-7km/h h, 7-20 km / h
Overall dimensions (L × W × H) 7,050 mm × 2,570 mm × 3,220 mm (total height 4,340 mm)
WEIGHT
Working weight 8,300 kg
Load capacity 9,600 kg
Max. gross weight 17,900 kg
CABIN
Type Closed cab, inclined front glass, comfortable seats with flexible suspension and adjustable height
Air conditioning system Air conditioning cooling and heating
