Description

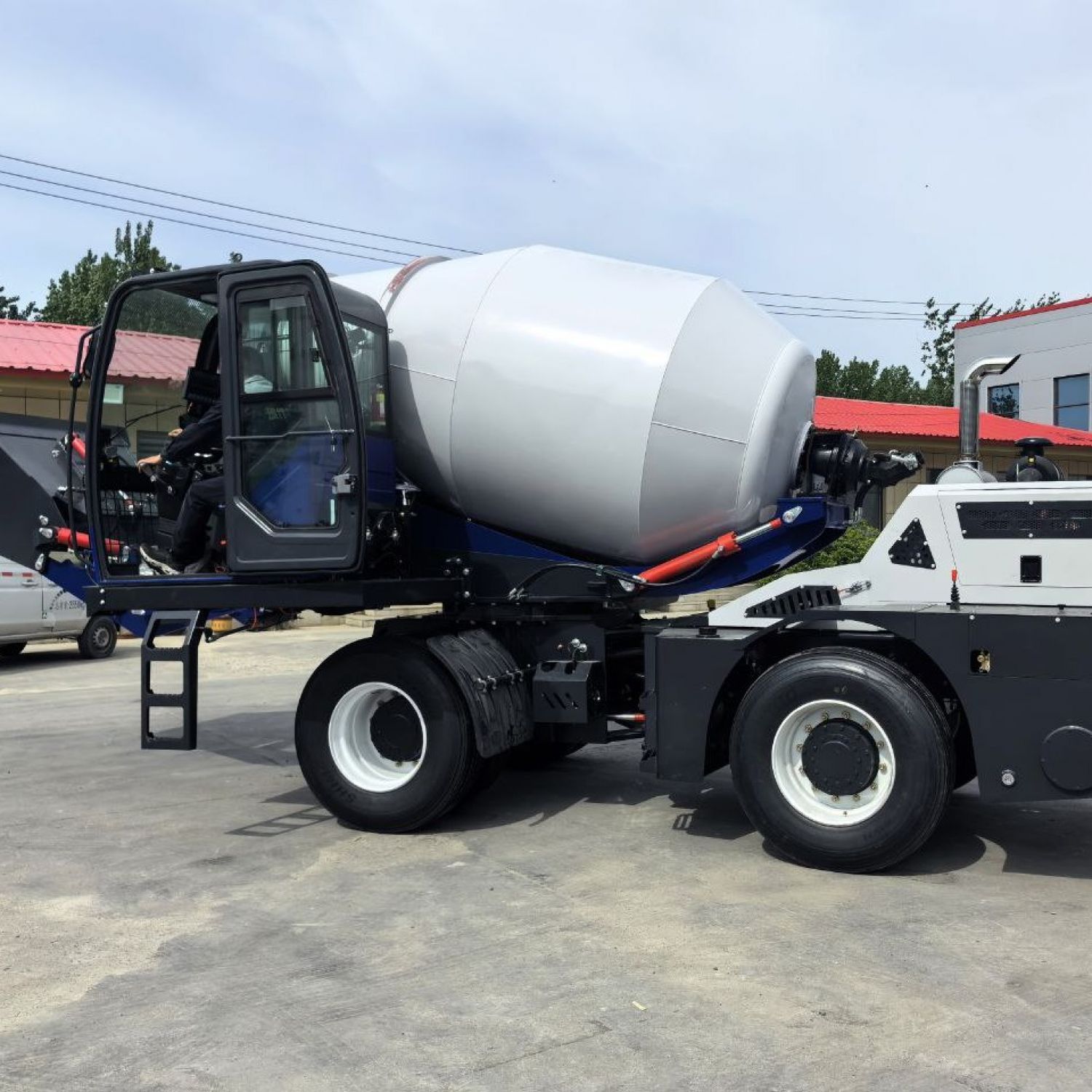

Diesel engine
Model: YCD4J22G
Total displacement, without cylinders: 4330 cc, 4 rows
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 85 kW (116 hp)
Max. torque: 390 Nm at 2800 rpm
Electrical system
Generator: 28V-1400WA (50.5A)
Battery: 2x12V-60Ah (272A)
Road lighting system, rear working lights
Steering
4-wheel steering
Hydraulic power steering
4x4 all-wheel drive
Transmission torque converter with a closed piston pump and reverse gear control on the steering wheel
Manual gearbox with electro-hydraulic control
Speed: 2 forward gears: I - 0-5 km / h, II - 5-22 km / h, 2 reverse gears: I - 0-5 km / h, II - 5-22 km / h
Axles and wheels
4 wheels controlled by planetary gearboxes on a flanged gearbox
Front axle oscillates (± 28°) with planetary gear
Tyres 15.5/65-18, axle load: 5150 kg, 450 kPa
Brakes
Four Wheels air brake
Negative type parking brake with internal wheel rims on the front axle
Water system
24V self-priming water pump with fast suction
Maximum capacity (internal/external suction pump): 90/150 liters per minute
Two tanks with a total capacity of 2x285 liters
Water supply to the drum is controlled by an electromagnetic flow meter and the flow rate reading in liters on the cabin display
External washing is carried out with a water jet gun using a high-pressure water pump
Mixing and unloading
Double-cone drum with double-spiral mixing screws and a convex bottom
Geometric drum volume: 5300 liters
Rotation speed drum speed: 20 rpm
Concrete output per cycle: 3.5 m³
Support frame mounted on a "heavy duty” ball fifth wheel, with hydraulic rotation of 270°
Drum rotation via variable flow gear pump and orbital hydraulic motor in open circuit with adjustable manual controls located manually in the cabin and at the rear of the machine
Discharge chute with mechanical tilt via one controlled handle and 90° rotation, independent of the inclination of the mixing drum
Removable chute when discharging from the hopper
2 discharge chute extensions included as standard
Hydraulic system of the equipment
Pump: EATON
Maximum flow: 64/39/20 l /min
Maximum pressure: 42 MPa
Mixing motor: EATON
3 handles controlled by a multifunctional joystick
Aluminum heat exchanger for cooling hydraulic oil
Loader
Automatic weighing function, loading device with toothed bucket and lifting arms controlled by double-acting hydraulic cylinders
Automatic unloading hatch with mechanical lever
Volume capacity: 600 liters
Number of loading times: about 6
Cabin
Closed cabin with heating system
Tilting front window
Anatomical seat with flexible suspension and height adjustment
Service filling tanks
Fuel tank: 120 liters
Total hydraulic system capacity: 220 liters
Engine oil: 16 liters
Weight
Weight in working condition: 8,500 kg
Maximum gross weight: 16,900 kg
Load capacity: 8,400 kg
Overall dimensions
Length × Width × Height: 7050 × 2600 × 3230 mm
Length × Width × Height: 5150 × 2600 × 4340 mm
