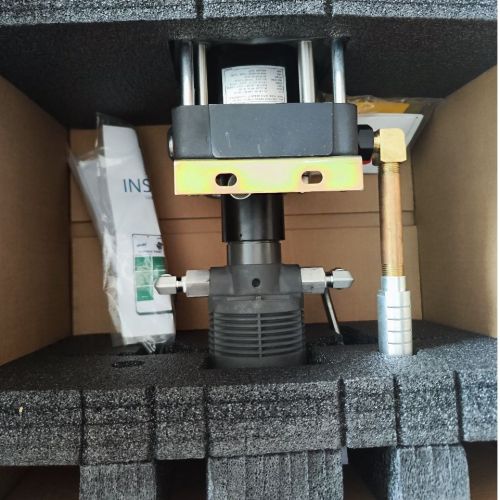

HASKEL AGD-4 Gas Booster

Description

With a nominal pressure ratio of 4:1, the Haskel model AGD-4 Double-Acting, Single-Stage Gas Booster utilizes air pressure to boost gas pressures to a maximum of 1250 psi PSIG.

Features & Benefits:

• Reliable, easy to maintain, compact and robust
• No heat, flame or spark risk
• Infinitely variable cycling speed and output
• Pneumatic driven units do not require electrical connections
• Easy to apply automatic controls
• No limit or adverse affect to continuous stop/start applications
• Seal systems designed for long working life
• No air line lubricator required
• Hydrocarbon free – separation between air and gas sections
• Built-in cooling (most models)
• Suitable for most gases
• Ability to stall at any predetermined pressure and hold the fixed pressure without consuming power or generating heat

Technical Data:

• Ratio: 4:1
• Min GAS supply pressure: ATM
• Max GAS supply pressure: 1250 psi
• Max rated GAS outlet pressure: 1250 psi
• Static outlet stall pressure formula: 4 Pa + Ps (Pa = air drive pressure, Ps = GAS supply pressure)
• Min AIR drive pressure: 20 psi
• Max AIR drive pressure: 150 psi

Sample Performance Characteristics:

• Boost 4.5 SCFM Gas from 50 psi to 200 psi while using 30 SCFM Air @ 90 psig supply pressure
• Boost 16 SCFM Gas from 200 psi to 400 psi while using 30 SCFM Air @ 90 psig supply pressure
• Boost 25.4 SCFM Gas from 350 psi to 600 psi while using 30 SCFM Air @ 90 psig supply pressure
• Boost 33 SCFM Gas from 500 psi to 800 psi while using 30 SCFM Air @ 90 psig supply pressure

Physical Characteristics:

• Unit weight: 31 LBS.
• Displacement / cycle: 19.3 cu. in.
• Max cycles: 60/min.
• GAS inlet/outlet connections: 3/8″ FNPT
• AIR drive inlet port: 1/2″ FNPT

Repair kit information:

• Gas section seal kit P/N: 29013
• Air drive section seal kit P/N: 16772
• Air valve seal kit P/N: 16771
• Check valves seal kit P/N: N/A
• Distance piece kit P/N: 17327
• Optional tools: 28584 (Sleeve removal tool); 56198 (Bullet tool for installing piston rod thru rod seals)
• Notes: P/N 29013 kit includes piston and check valves seals. Units manufactured prior to Jan. 1975 use Gas Section seal kit #17990.
