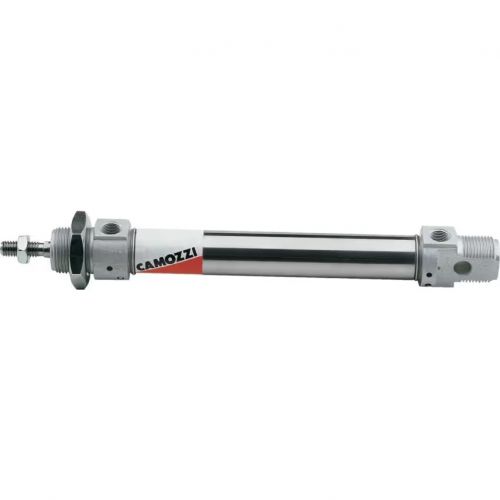

Camozzi 24N2A25A100 mini pneumatic cylinder
Eurolux
> 24 Hrs
100%
Description
The Camozzi 24N2A25A100 is a compact, double-acting mini pneumatic cylinder from Series 24, with a 25 mm bore and 100 mm stroke. It complies with ISO 6432, is made from stainless steel and anodized aluminum, and includes a magnetic piston for position sensing — ideal for precision motion in compact automation setups.
-
Model / Series: Camozzi Series 24
-
Standard: ISO 6432 (CETOP RP52-P)
-
Bore Size: 25 mm
-
Stroke Length: 100 mm
-
Operation: Double-acting
-
Cushioning: Mechanical (non-adjustable elastic bumpers)
-
Position Sensing: Magnetic piston (suitable for external sensors)
-
Materials:
-
Barrel and Rod: Stainless Steel (AISI 303/304)
-
End Caps: Anodized Aluminum
-
Seals: NBR and/or Polyurethane (PU)
-
-
Port Size: G 1/8”
-
Rod Thread: M10 x 1.25 (male)
-
Speed Range: 10–1000 mm/s (no load)
-
Operating Pressure: 1–10 bar
-
Temperature Range: 0°C to +80°C (−20°C with dry air)
-
Mounting Options: Foot brackets, rear/female thread, flange, trunnion
-
Weight: ~0.33 kg
