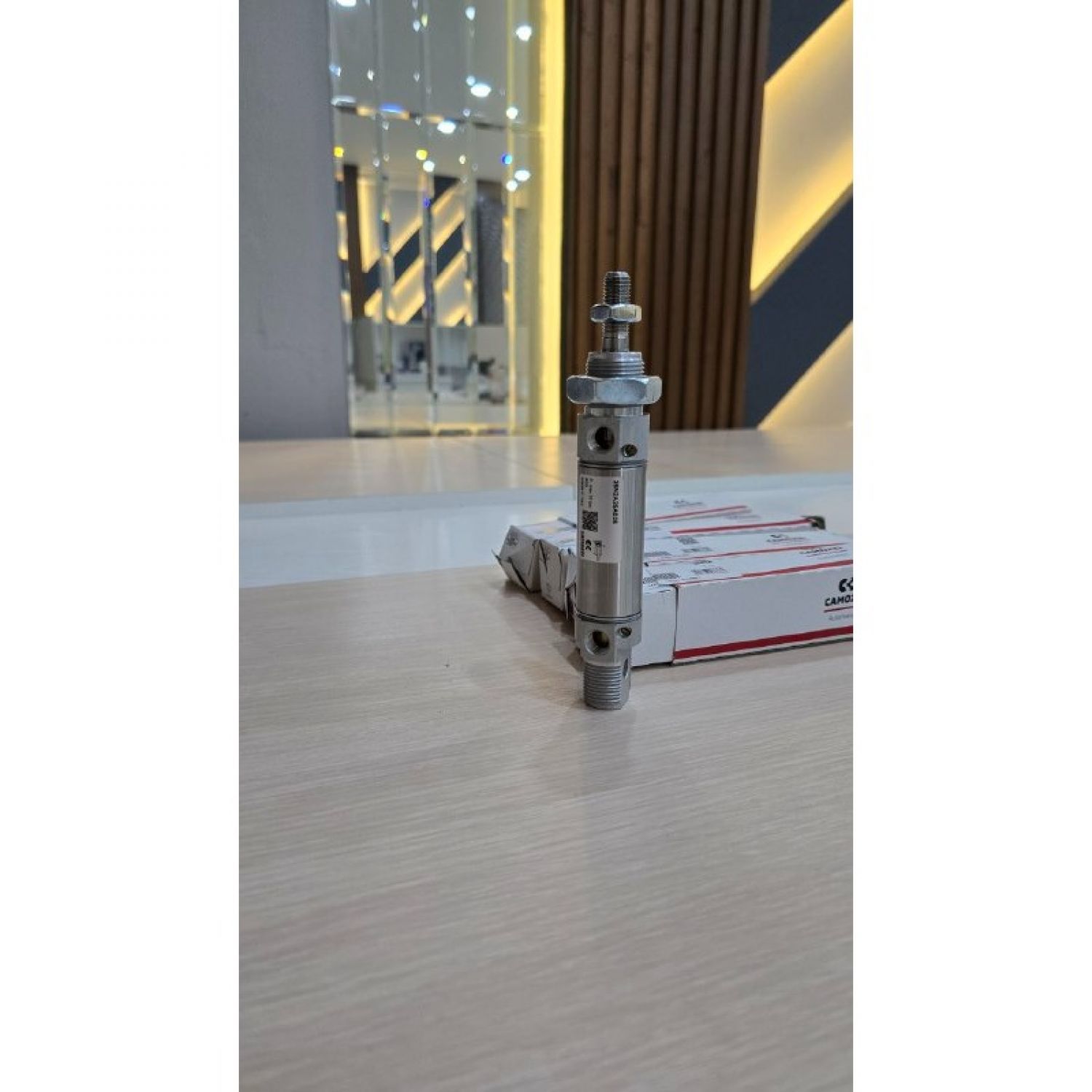

CAMOZZI 25N2A25A025 double-acting mini pneumatic cylinder
Eurolux
> 24 Hrs
100%
Description
The CAMOZZI 25N2A25A025 is a compact, double-acting mini pneumatic cylinder from Series 25, compliant with the DIN/ISO 6432 standard. It features a 25 mm bore, 25 mm stroke, adjustable cushioning on both ends, a magnetic piston for sensor use, and a crimped flange design — ideal for compact automation systems.
-
Model: 25N2A25A025
-
Series / Standard: Series 25 / DIN ISO 6432
-
Bore Diameter: 25 mm
-
Stroke Length: 25 mm
-
Operation: Double-acting
-
Cushioning: Adjustable pneumatic damping on both ends
-
Magnetic Piston: Yes (for sensors)
-
Port Size: G 1/8
-
Rod Thread: Male, M10×1.25
-
Body Construction: Crimped with flange
-
Materials:
-
Tube: Stainless steel AISI 304
-
Rod: Stainless steel AISI 303
-
End Caps: Aluminium
-
Seals: NBR / Polyurethane
-
-
Operating Pressure: 1 to 10 bar
-
Temperature Range: –20 °C to +80 °C (some sources list 0 °C to +80 °C)
-
Speed Range (No Load): 10 to 1000 mm/s
-
Mounting Options: Flange, brackets, nut on rod or caps
-
Weight: Approx. 289 g
