Camozzi 32M2A032A015 pnevmatik silindir
Eurolux
> 24 Hrs
100%
Description

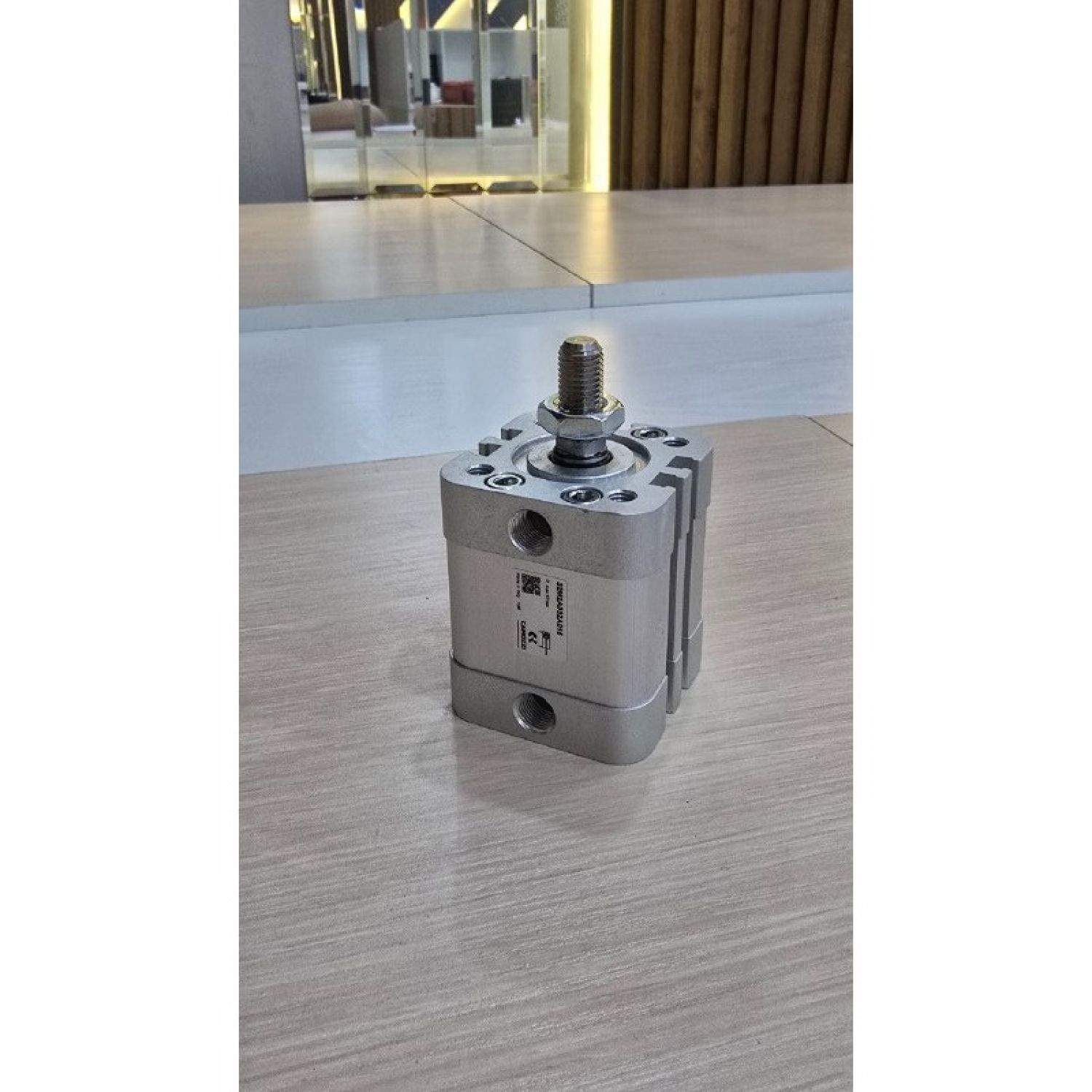

Camozzi 32M2A032A015 is a compact, double-acting pneumatic cylinder from Series 32 (ISO 21287 standard). It is designed for reliable motion in applications with limited installation space.
-
Series: 32 (compact magnetic cylinders)
-
Piston Diameter: 32 mm
-
Stroke: 15 mm
-
Operation Type: Double-acting
-
Rod Thread: M10 × 1.25, male thread
-
Position Sensing: Magnetic piston, compatible with external sensors
-
Ports: G 1/8" (parallel, female thread)
Materials
-
Body and End Caps: Anodized aluminum
-
Rod: Stainless steel AISI 303
-
Seals: Polyurethane (PU)
Performance
-
Operating Pressure: 1 to 10 bar
-
Operating Temperature: 0 °C to +80 °C (down to −20 °C with dry air)
-
Speed (no load): 10–1000 mm/s
-
Air Quality: Filtered air (ISO 8573‑1: 7:4:4)
-
Force at 6 bar: approx. 426 N (extension), 366 N (retraction)
Mounting Options
-
Flange, foot brackets, trunnion — via threaded holes in the end caps
Weight
-
Approx. 0.77 kg (estimated based on similar models)
