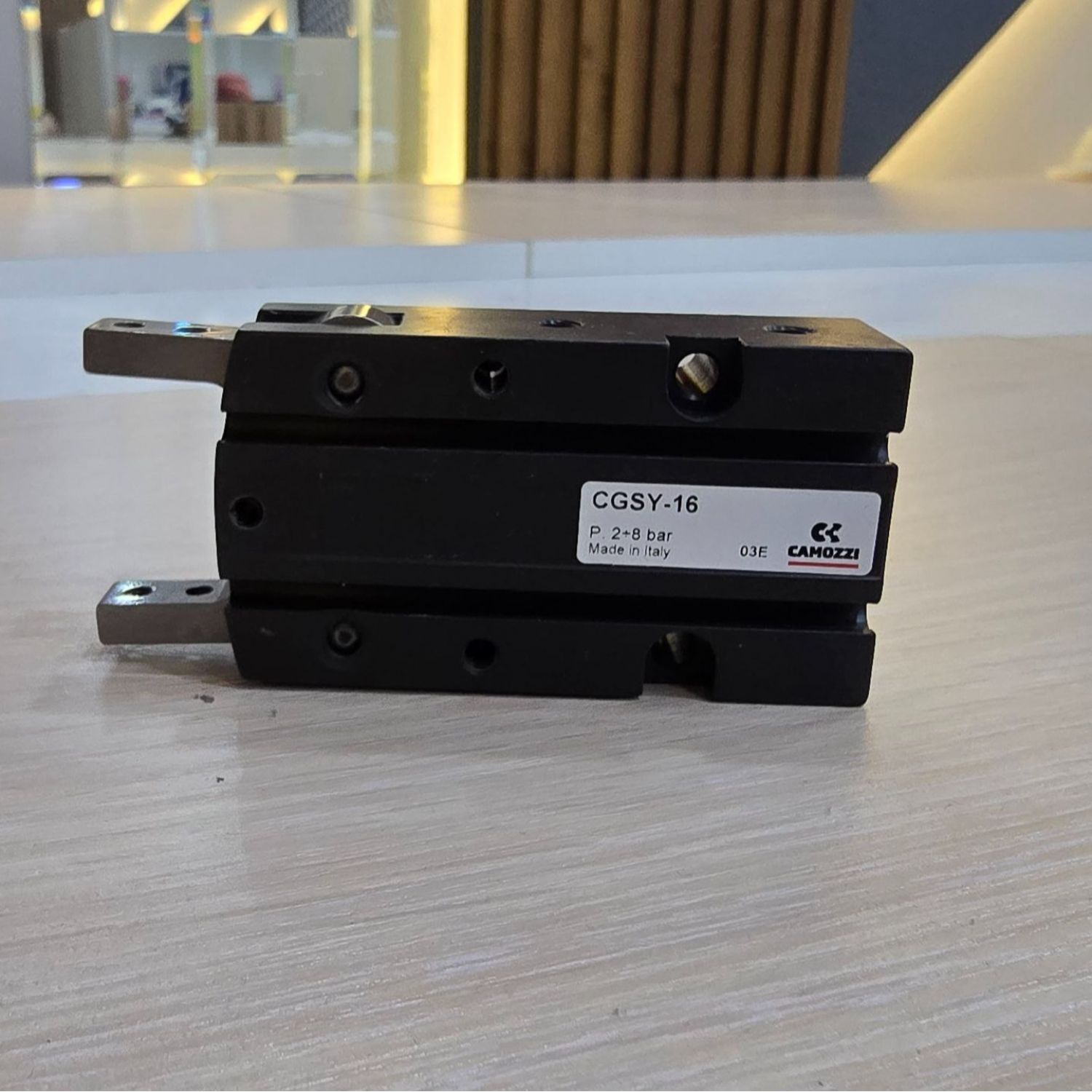

Camozzi CGSY‑16 pneumatic radial gripper
Eurolux
> 24 Hrs
100%
Description
Camozzi CGSY‑16 is a pneumatic radial gripper from the CGSY Series, featuring a 180° opening angle and two jaws. It’s engineered for high-performance handling in compact spaces and demanding environments.
-
Series: CGSY (Radial Gripper, 180° opening)
-
Size: 16 mm (gripper diameter)
-
Operation: Double-acting pneumatic
-
Opening angle: 2 × 90° (total 180°)
-
Gripping force at 6 bar:
-
Closing: 61 N (total), 30.5 N per jaw
-
Opening: 72 N (total), 36 N per jaw
-
-
Stroke per jaw: 90°
-
Working pressure: 2 – 8 bar
-
Operating temperature: 5 °C to 60 °C
-
Storage temperature: –10 °C to 80 °C
-
Repeatability: 0.05°
-
Maximum operating frequency: 3 Hz
-
Weight: 0.147 kg
-
Air quality requirement: Filtered air (ISO 8573‑1 class 7:4:4)
-
Construction: Cam-actuated jaws; precision design suitable for dusty, damp environments and frequent wash-downs; precise positioning enabled by calibrated mounting holes on both base and sides
-
Applications: Ideal for handling systems, PET bottle blowing, food and chemical packaging, assembly tasks
-
Customization: Available in ATEX-certified (EX) version for explosive atmospheres
