Camozzi SWCN‑V01‑P4‑2 electronic vacuum
Eurolux
> 24 Hrs
100%
Description

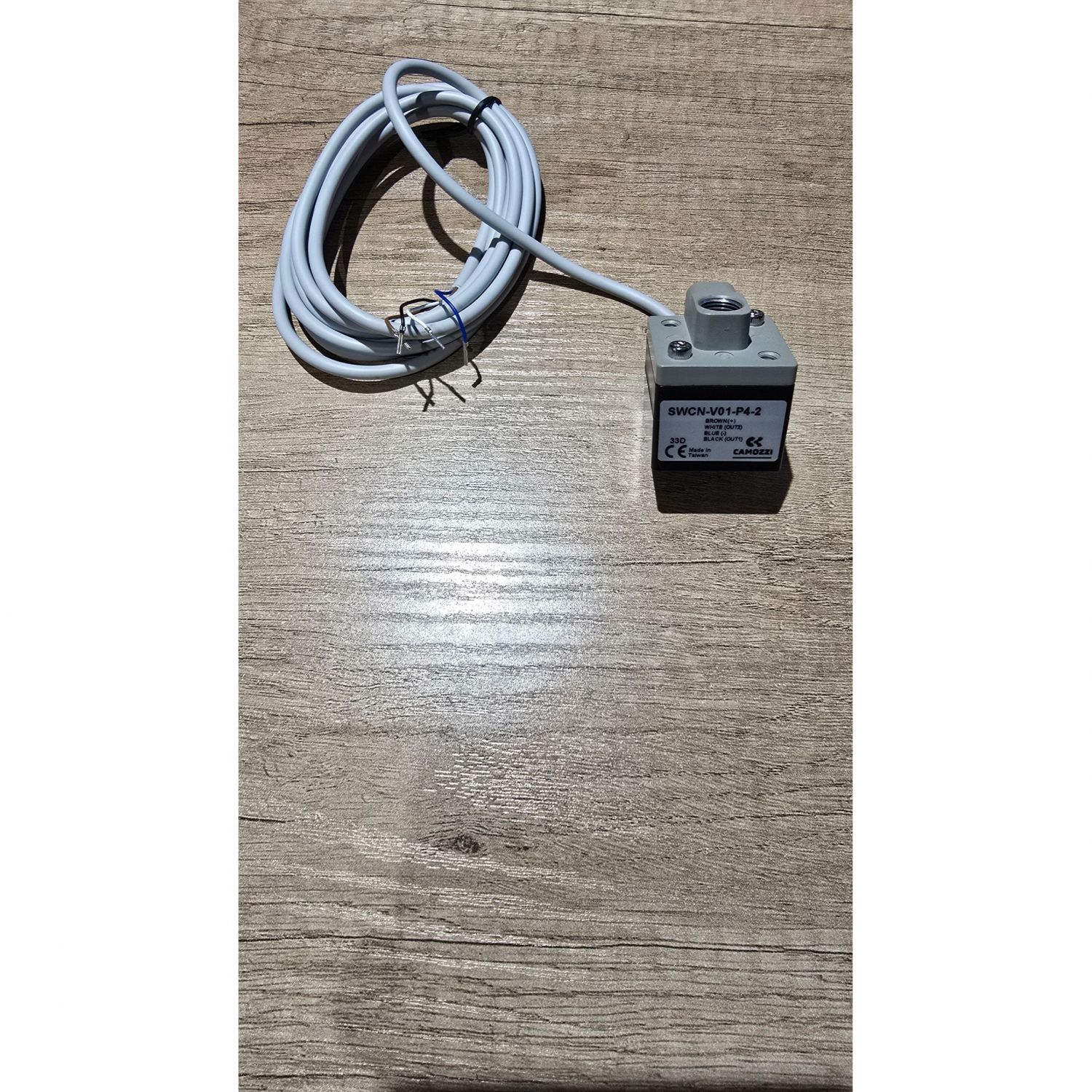

Camozzi SWCN‑V01‑P4‑2 is an electronic vacuum/pressure switch with a built-in digital display, offering high precision and flexible configuration.
-
Measurement range: –1 to 1 bar (vacuum or pressure)
-
Outputs: Two independent PNP digital outputs, both configurable as NO (normally open) or NC (normally closed)
-
Switching behavior: Customizable threshold and hysteresis; can operate in a two-threshold comparator mode
-
Display: 3½-digit LED display with membrane keypad for parameter setup
-
Supply voltage: 12–24 V DC ±10%
-
Max output current: 80 mA
-
Protection rating: IP65
-
Connection: G 1/8 thread; 5‑wire cable, 2 m length
-
Operating temperature: 0 °C to +50 °C
-
Repeatability: ≈ ±0.2 % full scale
-
Accuracy: ±2 % full scale ± 1 digit
-
Maximum pressure: Up to 3 bar
-
Body material: Polycarbonate (PC)
-
Weight: Approx. 105 g
