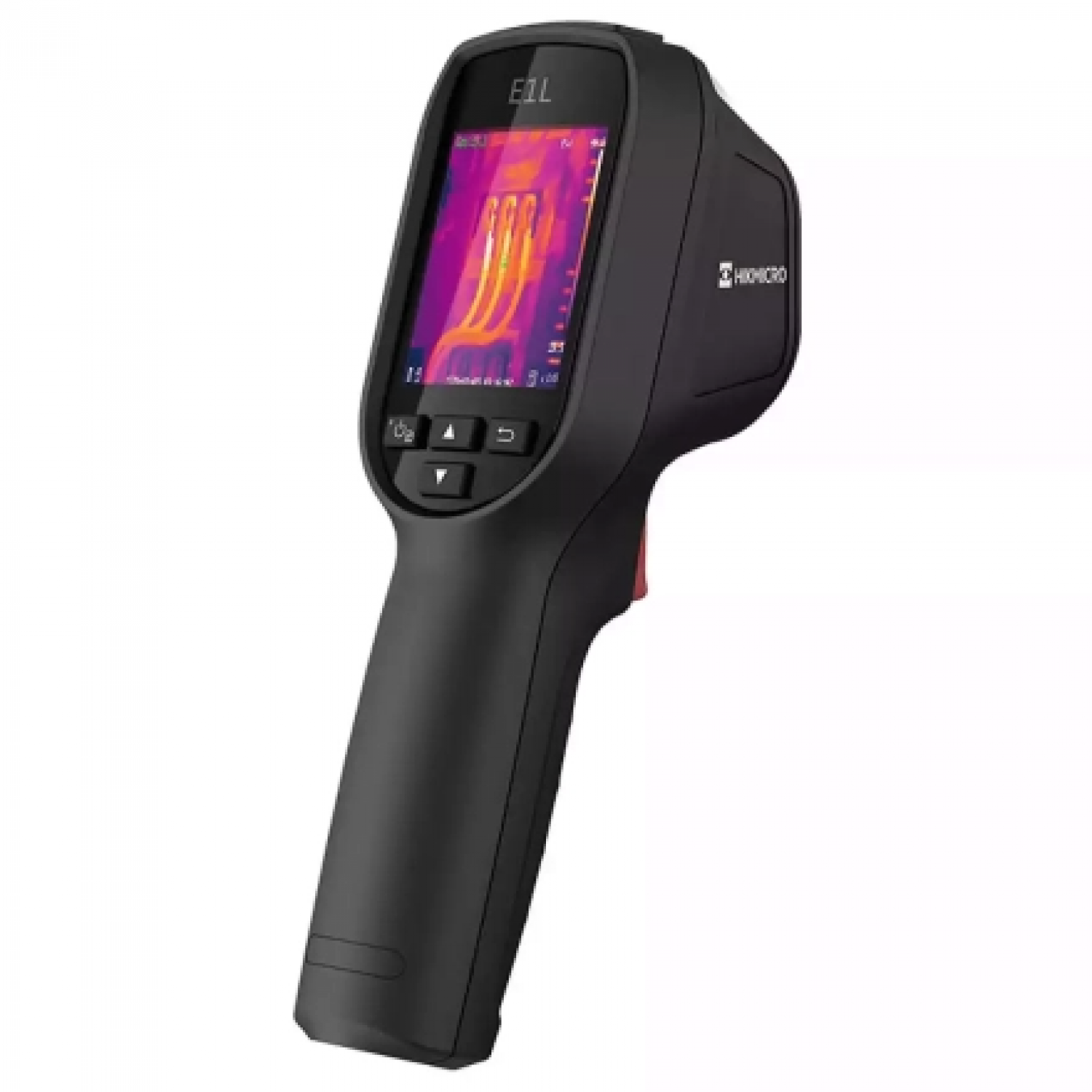

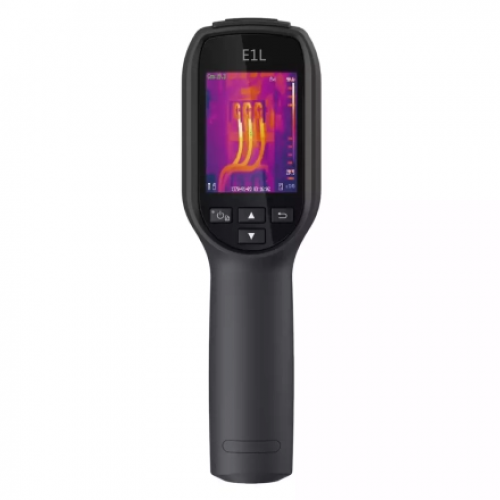

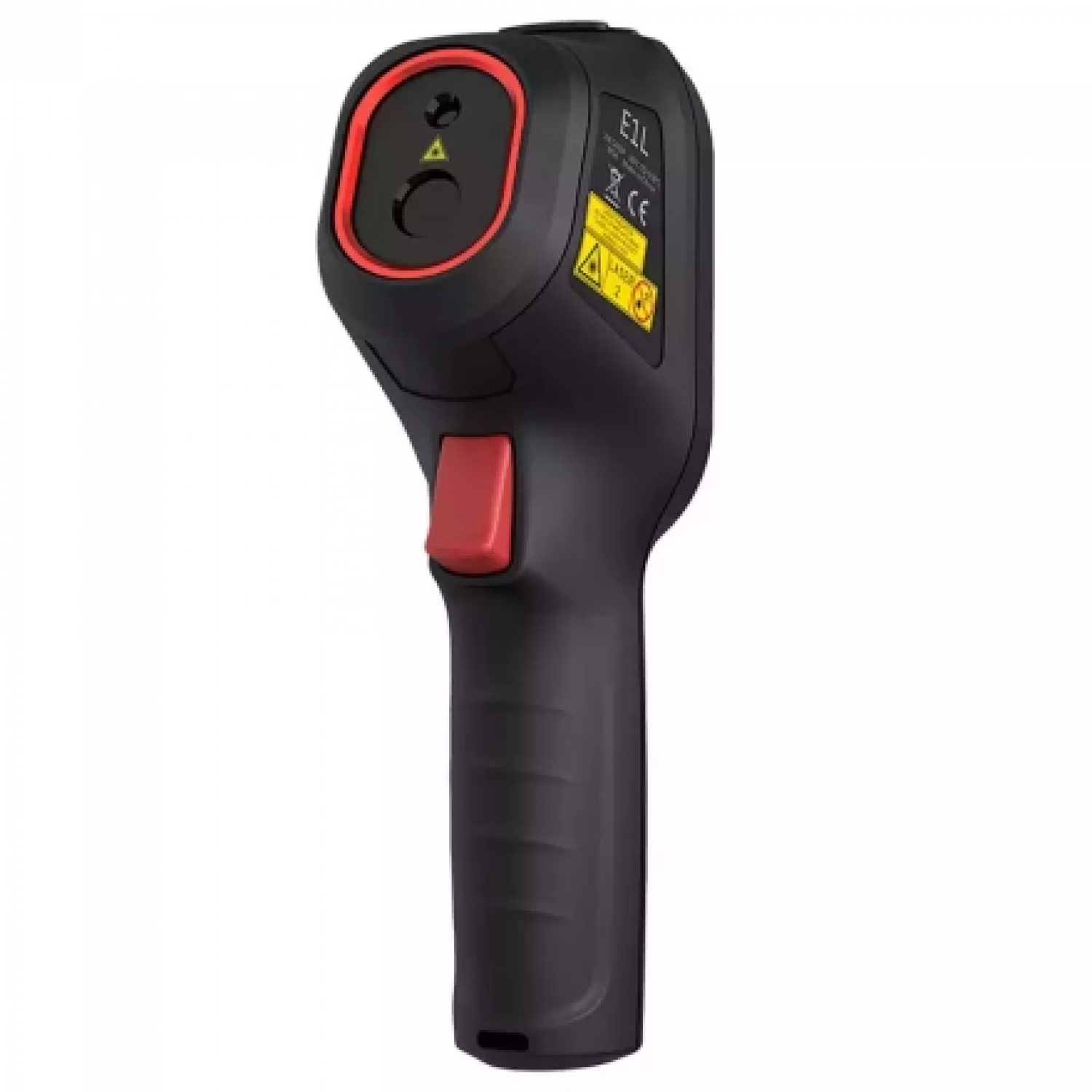

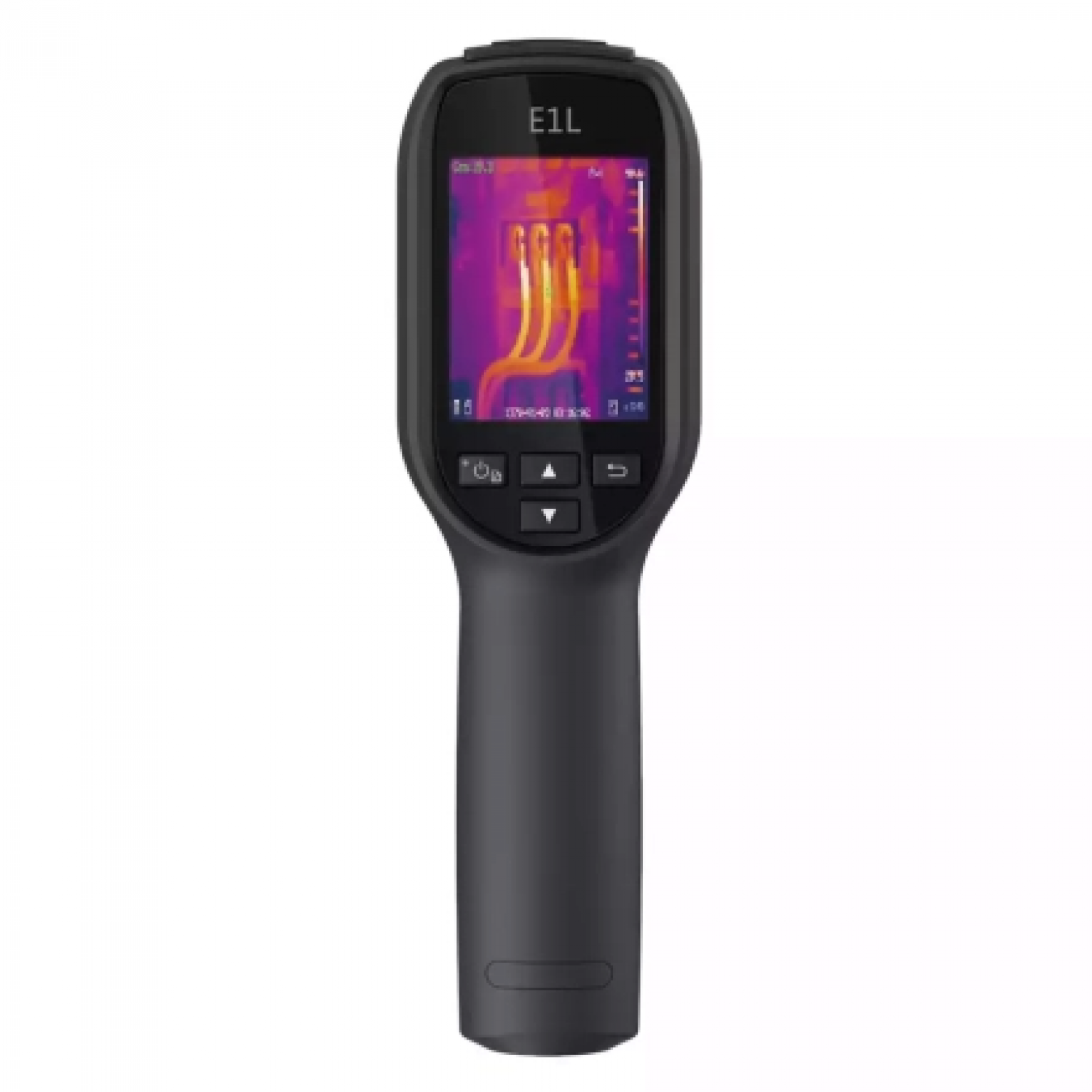

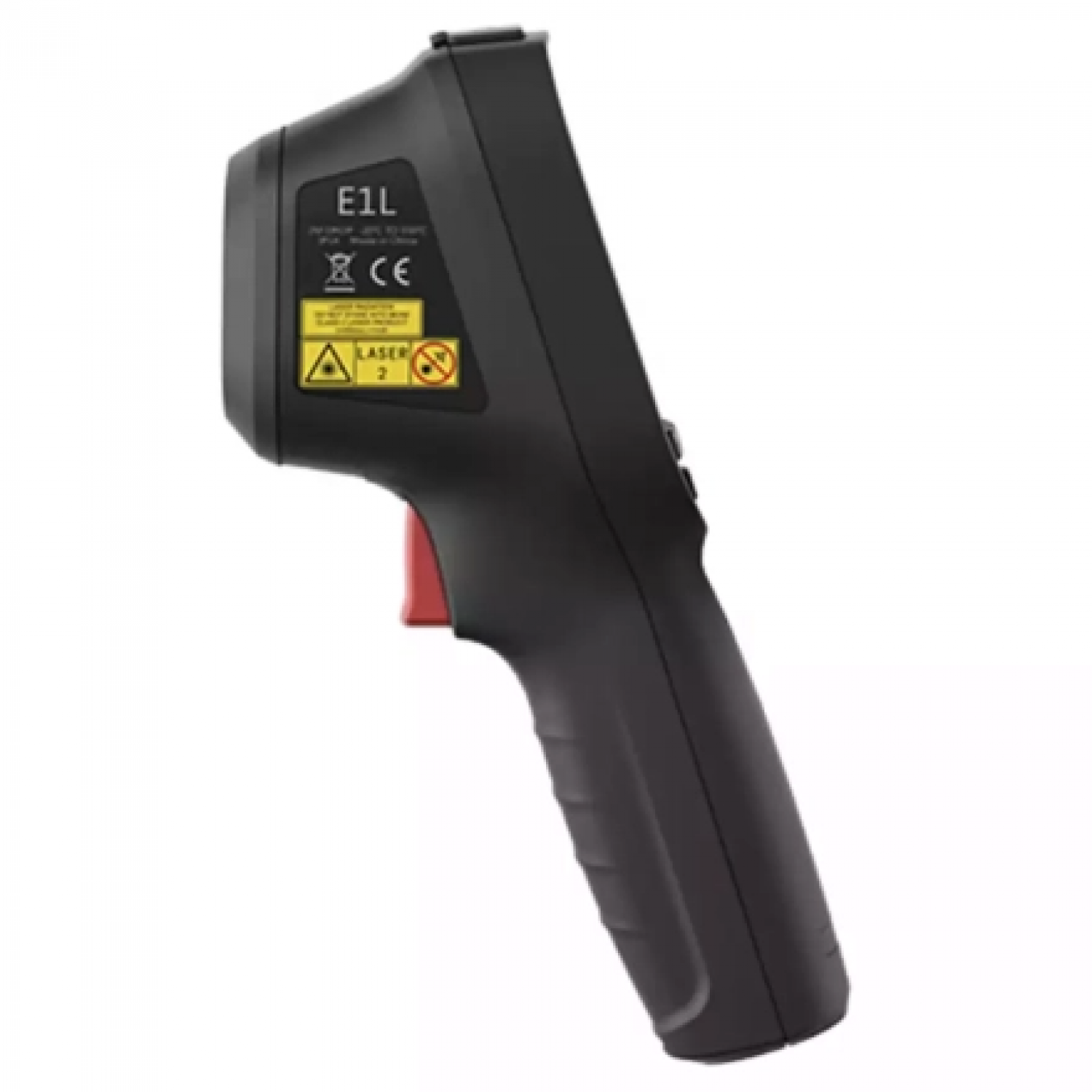

HIKMICRO E1L — 160×120 Portable Thermal Camera

Description

HIKMICRO E1L is a compact thermal camera designed to detect temperature anomalies in electrical systems, buildings and household applications. With 160×120 IR resolution, <40 mK NETD and a 25 Hz frame rate, it provides clear thermal imaging for basic inspection and diagnostics. The camera measures temperatures from −20°C to +550°C and is suitable for electrical equipment, heating, ventilation and building inspections.

Key Specifications:

• IR resolution: 160×120 pixels

• NETD: <40 mK

• Frame rate: 25 Hz

• Pixel pitch: 17 μm

• Spectral range: 7.5–14 μm

• Focal length: 3.1 mm

• Aperture: F1.1

• FOV: 37.2° × 50°

• IFOV: 5.48 mrad

• Minimum focus distance: 0.15 m

• Focus: Fixed focus

• Display: 2.4″ LCD, 240×320

• Palettes: White Hot, Black Hot, Rainbow, Ironbow

• Temperature range: −20…+550°C

• Accuracy: ±2°C or ±2%

• Measurement tools: center, hot and cold point

• Level and span: Auto

• Storage: 8 GB Micro SD card

• Image storage: approx. 120,000 images

• USB interface: Micro USB

• Laser: Class II

• Battery: Rechargeable Li-ion

• Battery life: approx. 8 hours

• Charging time: approx. 4 hours

• Protection: IP54

• Drop resistance: 2 m

• Operating temperature: −20…+50°C

• Storage temperature: −20…+60°C

• Dimensions: 196 × 117 × 59 mm

• Weight: approx. 350 g

• Tripod mount: UNC ¼″-20

Advantages:

• 160×120 thermal resolution

• Temperature measurement up to 550°C

• High thermal sensitivity below 40 mK

• Fast 25 Hz thermal imaging

• Up to 8 hours of battery operation

• 8 GB Micro SD storage

• IP54 protection and 2 m drop resistance

• Built-in laser pointer

• Suitable for electrical, building and household inspections
