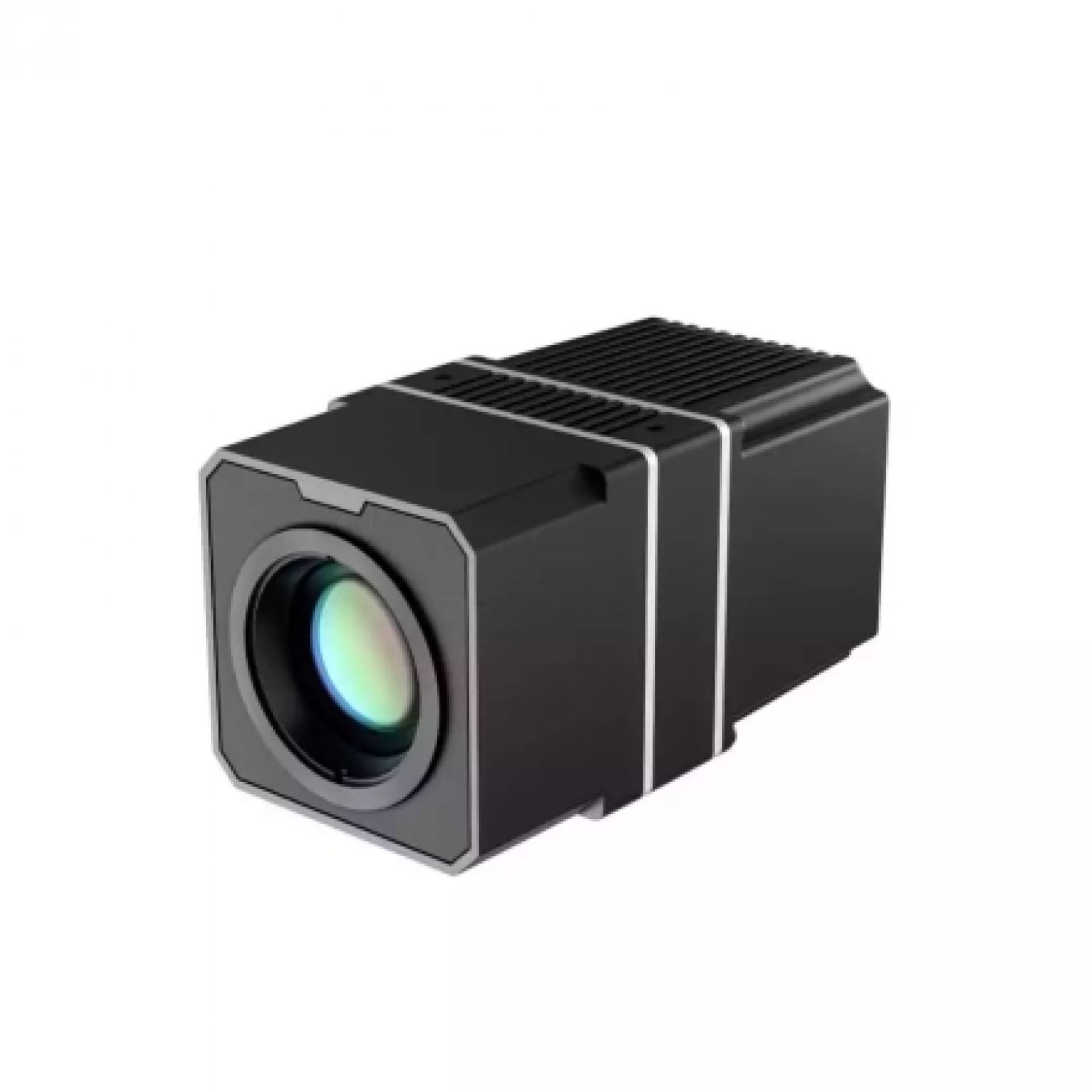

HIKMICRO HM-TD2A67H1-15/Q — High-Temperature Thermal Camera

Description

HIKMICRO HM-TD2A67H1-15/Q is a 640×512 high-temperature network thermographic camera module with a 15 mm lens. It is designed for accurate thermal imaging and temperature monitoring from 0°C to 1800°C. The uncooled VOx infrared sensor provides high thermal sensitivity for industrial process monitoring, security, energy systems, machinery and intelligent automation applications.

Key Specifications:

• IR resolution: 640 × 512

• Sensor: Uncooled VOx focal plane array

• Pixel pitch: 17 μm

• NETD: ≤35 mK

• Focal length: 15 mm

• IFOV: 1.13 mrad

• Aperture: F1.5

• Field of view: 41.5° × 33.3°

• Minimum focusing distance: 0.5 m

• Temperature ranges: 0…800°C and 600…1800°C

• Accuracy: ±2% or ±3% for 100–1800°C objects depending on ambient conditions

• Real-time hot/cold spot detection

• Up to 10 user-defined points and areas

• 1 user-defined line

• Isotherm alarms: above / between / below

• Thermal data transmission via RTSP, ISAPI and SDK

• Full-screen real-time thermal data streaming

• Raw YUV data streaming

• Thermal data encoding: 640 × 512, 4 fps, 32-bit

Advantages:

• Measures extremely high temperatures up to 1800°C

• High thermal sensitivity and detailed thermal imaging

• 15 mm lens for industrial monitoring

• Suitable for integration into network and automation systems

• Ideal for industrial, energy, security and infrastructure applications
