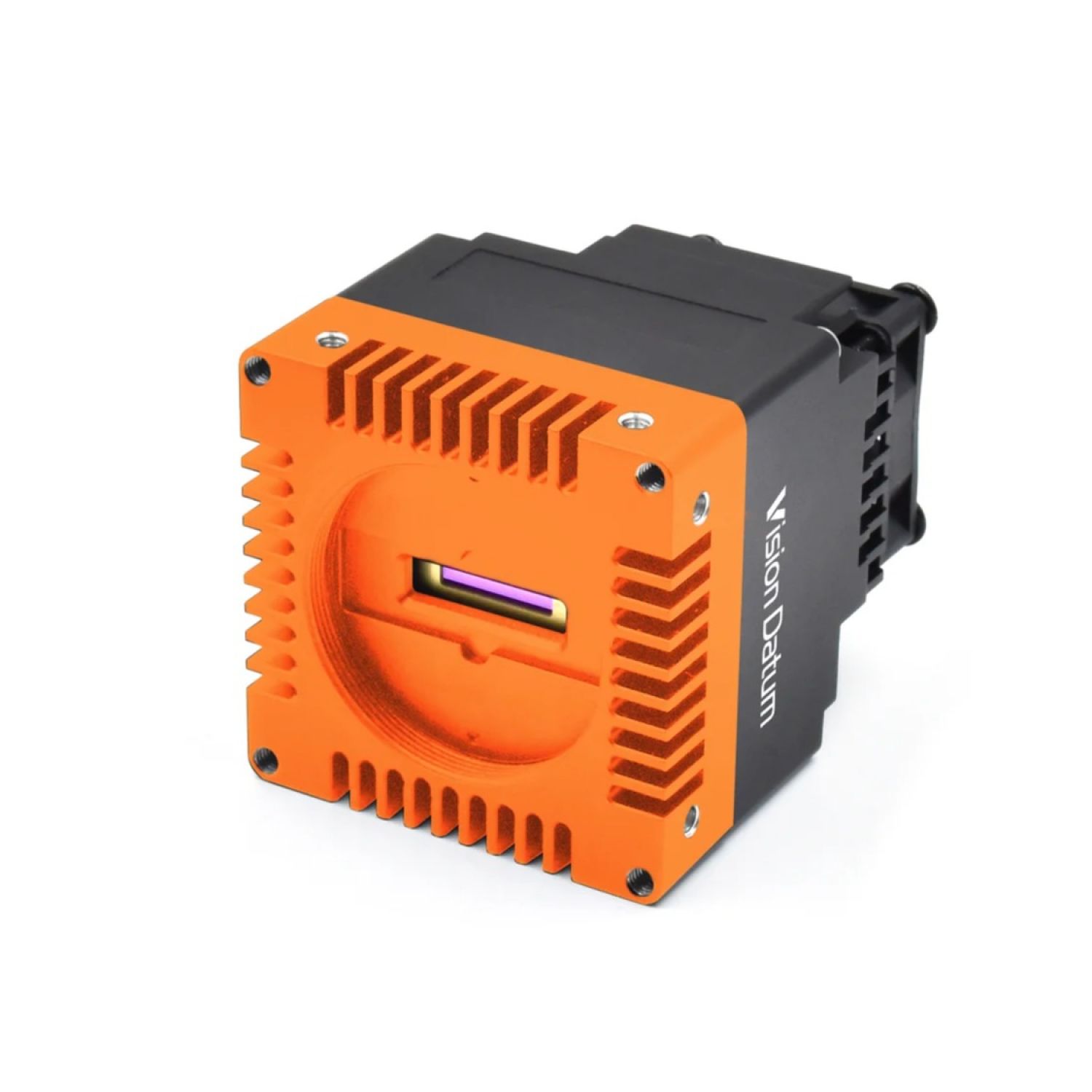

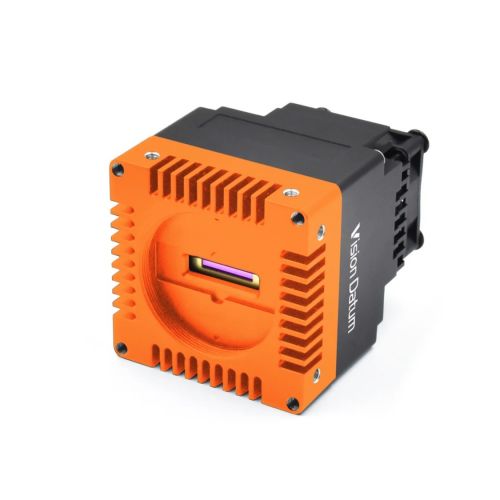

iBt-SW2K — 2K SWIR Line Scan Camera, 196 kHz CoaXPress

Description

iBt-SW2K is a high-speed SWIR line scan camera designed for industrial machine vision and continuous inspection applications. Available in 2048×1 and 2560×1 configurations, it provides SWIR imaging across the 950–1700 nm spectral range. Its InGaAs-based SWIR imaging technology enables inspection beyond the visible spectrum.

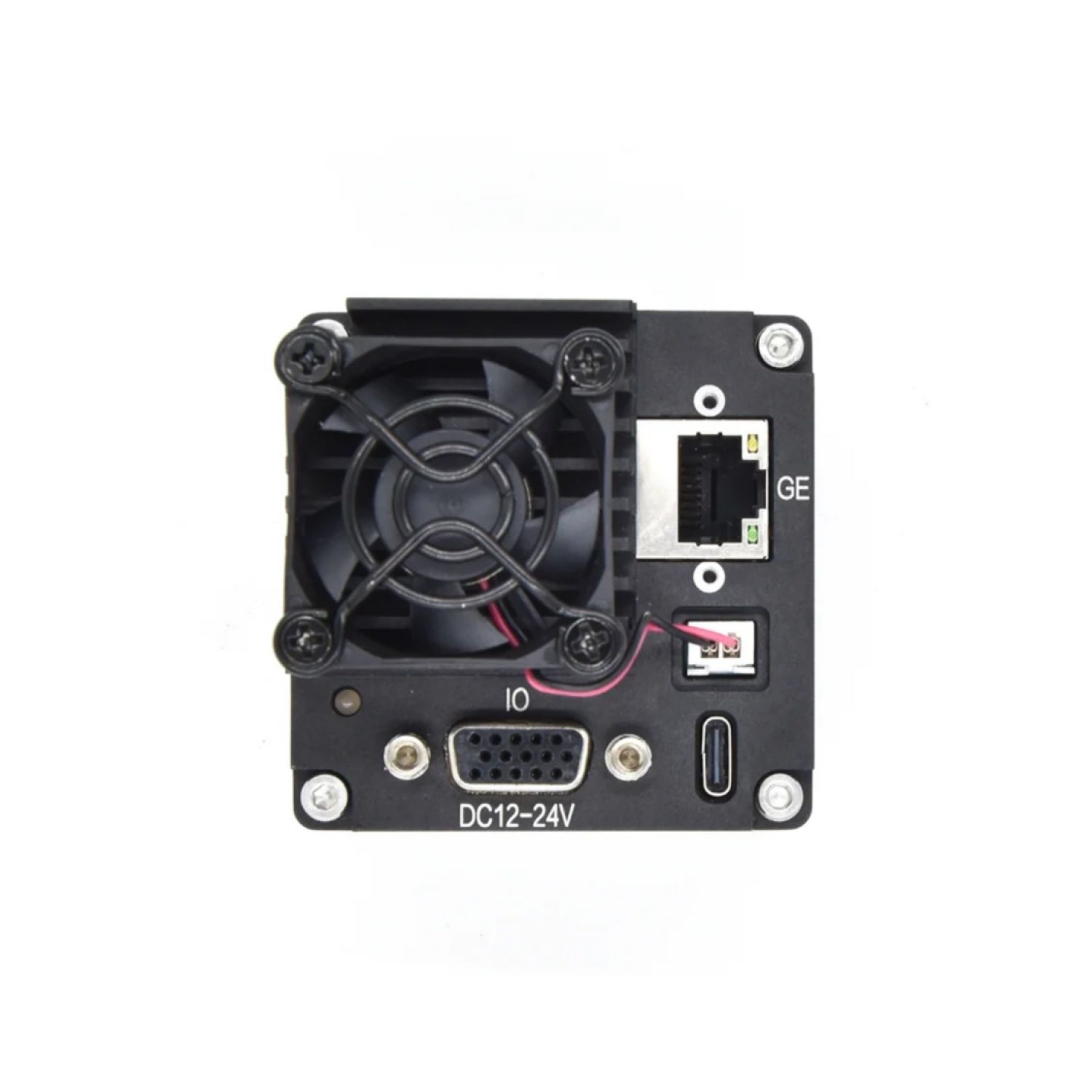

The 2048×1 versions use 12.5 μm pixels and support line rates up to 40 kHz. The iBt-SW2K-G uses a GigE interface, while the iBt-SW2K-C uses Camera Link. The 2560×1 iBt-SW2K-X uses 10 μm pixels and reaches up to 196 kHz through a CoaXPress interface.

All versions feature an M42 lens mount, allowing integration with SWIR-compatible industrial optics. The camera is suitable for high-speed web inspection, material sorting, food inspection, semiconductor inspection and solar cell inspection.

Key Specifications

• Series: iBt-SW2K
• Models: iBt-SW2K-G / iBt-SW2K-C / iBt-SW2K-X
• Technology: SWIR Line Scan
• Sensor technology: InGaAs
• Spectral range: 950–1700 nm
• Resolution: 2048×1 or 2560×1
• Pixel size: 12.5 μm or 10 μm
• Maximum line rate: up to 196 kHz
• iBt-SW2K-G: 2048×1 / 12.5 μm / 40 kHz / GigE
• iBt-SW2K-C: 2048×1 / 12.5 μm / 40 kHz / Camera Link
• iBt-SW2K-X: 2560×1 / 10 μm / 196 kHz / CoaXPress
• Lens mount: M42
• Compatible with industrial SWIR optics
• Recommended SWIR lenses:
  • VLEN2-2519SW-H3 — 25 mm, F1.9–22, FOV 58°, WD 0.4–0.95 m
  • VLEN2-4016SW-H3 — 40 mm, F1.6–22, FOV 37°, WD 0.4–0.95 m
  • VLEN2-5014SW-H3 — 50 mm, F1.4–22, FOV 30° / 24° / 18°, WD 0.4–0.95 m

Advantages

• Ultra-high line rate up to 196 kHz
• SWIR imaging across the 950–1700 nm range
• InGaAs imaging beyond the visible spectrum
• Suitable for high-speed production lines
• GigE, Camera Link and CoaXPress interface options
• 2K+ line scan resolution
• Suitable for material sorting and web inspection
• Applications in food, semiconductor and solar cell inspection
• Flexible M42 integration with SWIR industrial optics
