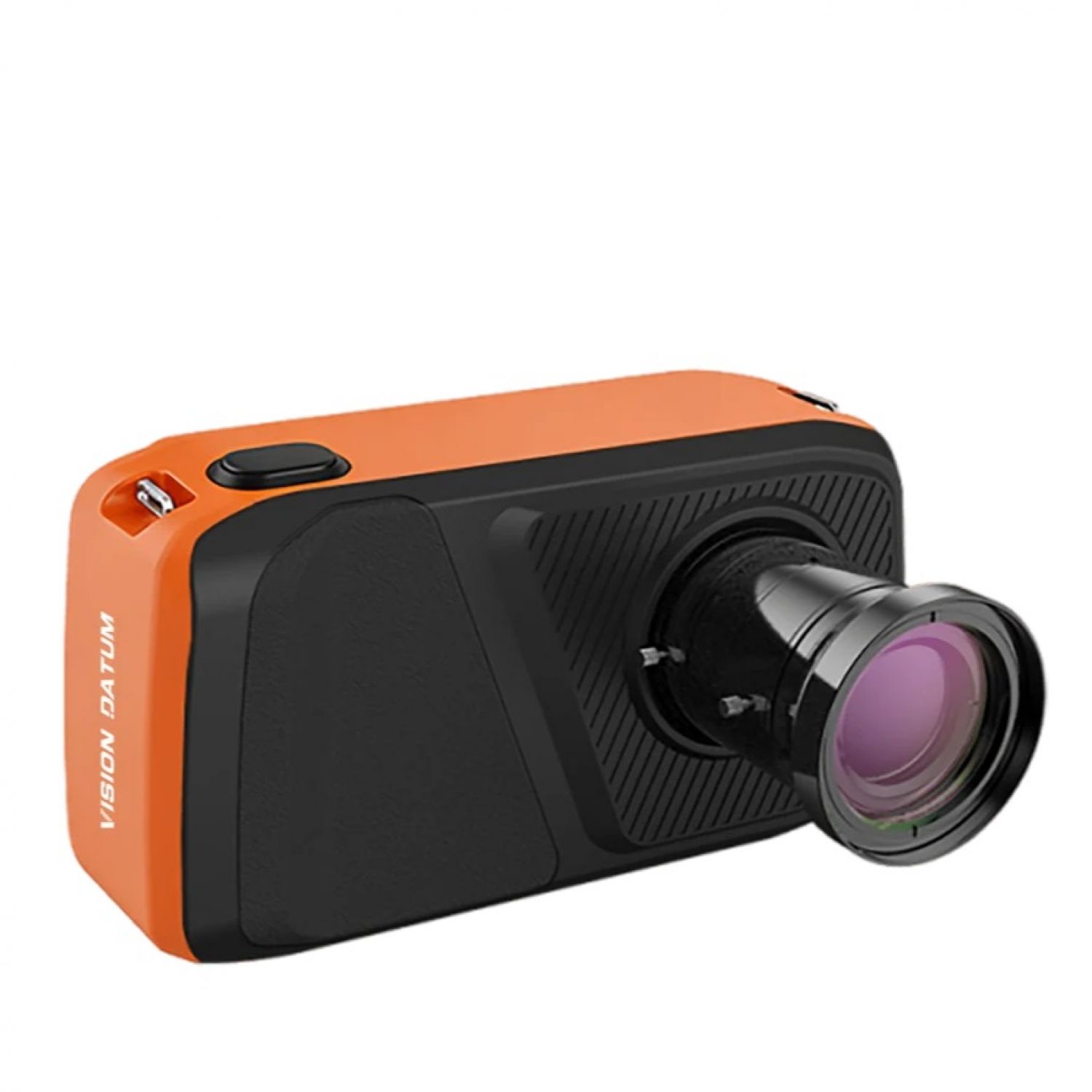

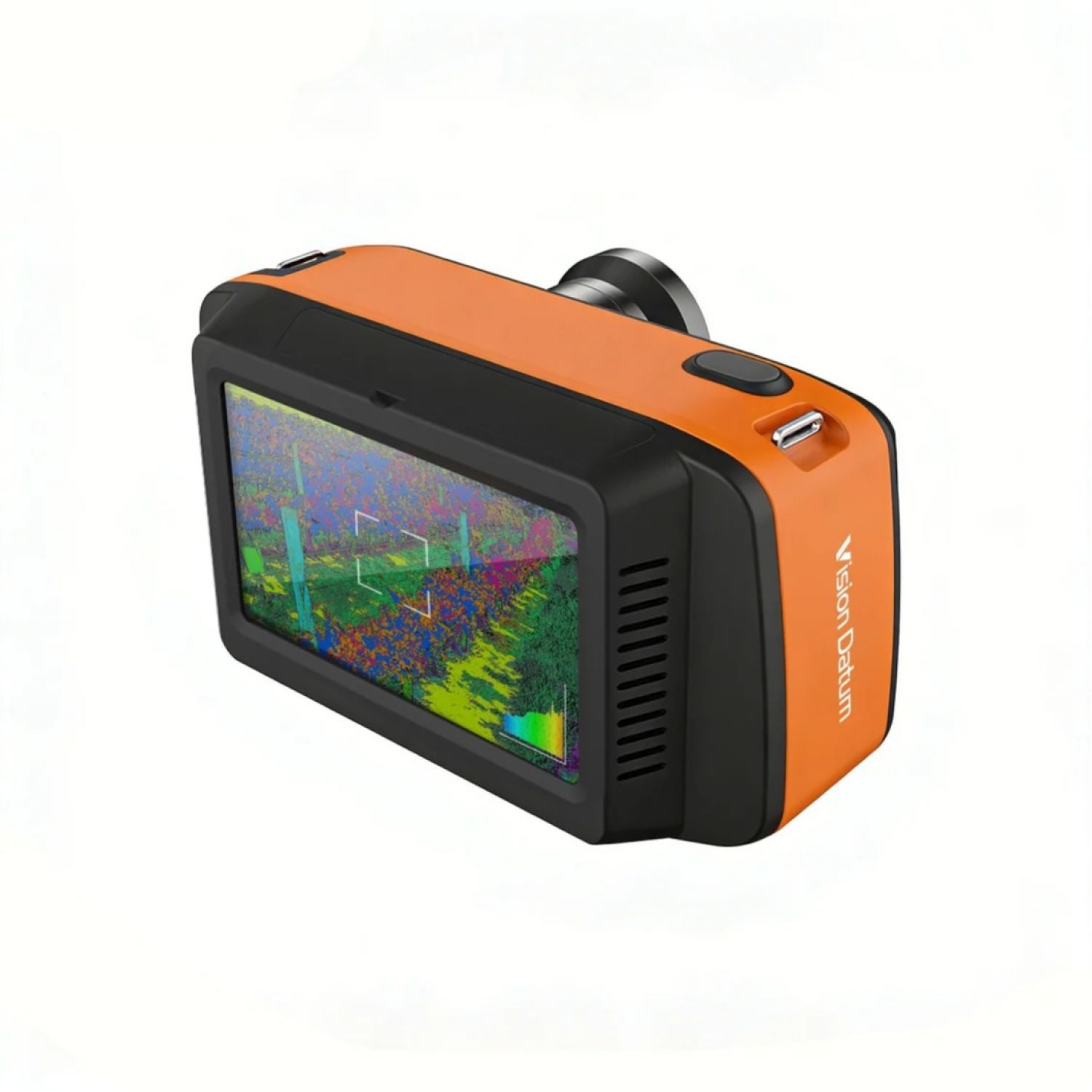

Hyperspectral SWIR Camera — iRx25USW04KM

Description

iRx25USW04KM is a high-performance VIS–SWIR hyperspectral camera designed for UAV-based remote sensing and detailed spectral analysis. Covering a wide 400–2500 nm spectral range, the system provides 1450 or more spectral bands for detailed material identification and hyperspectral imaging.

The system combines VIS–NIR 400–1000 nm and SWIR 900–2500 nm ranges using a high-efficiency transmission diffraction grating, CMOS and MCT sensors, and high signal-to-noise performance for stable data acquisition during flight.

Its compact design and USB output interface simplify integration with UAV platforms, including compatibility with DJI X-Port systems.

The camera is suitable for mineral exploration, water and soil monitoring, crop growth assessment, forestry analysis, environmental monitoring and scientific research.

Key Specifications

• Model: iRx25USW04KM
• Camera type: VIS–SWIR Hyperspectral Camera
• Combined spectral range: 400–2500 nm
• VIS–NIR range: 400–1000 nm
• SWIR range: 900–2500 nm
• Combined spectral bands: ≥1450
• VIS–NIR spectral bands: ≥1200
• SWIR spectral bands: ≥250
• Combined spatial pixels: ≥640
• VIS–NIR spatial pixels: ≥1920
• SWIR spatial pixels: ≥640
• Spectral sampling interval: ≤0.6 nm VIS–NIR / ≤6.5 nm SWIR
• FWHM: ≤2.5 nm VIS–NIR / ≤10 nm SWIR
• F-number: F/2.5
• Sensor: CMOS / MCT
• Sensor size: ≥11.3×7.1 mm / ≥9.6×7.68 mm
• Pixel size: ≥5.86×5.86 μm / ≥15×15 μm
• Bit depth: ≥12 bit / ≥14 bit
• Lens focal length: 25 mm
• Field of view: 25.36° VIS–NIR / 21.7° SWIR
• Combined FOV: 21.7°
• IFOV: 0.23 mrad VIS–NIR / 0.59 mrad SWIR
• Cooling: internal air cooling / Stirling cooling
• Effective slit length: ≥11.3 mm / ≥9.6 mm
• Output interface: USB
• UAV integration: DJI X-Port compatible
• Applications: remote sensing and hyperspectral analysis

Advantages

• Wide 400–2500 nm spectral coverage
• 1450+ spectral bands for detailed spectral analysis
• Combined VIS–NIR and SWIR imaging
• Suitable for mineral exploration
• Water and soil monitoring
• Crop growth and condition assessment
• Forestry and environmental monitoring
• Compact solution for UAV integration
• USB output interface
• Suitable for scientific research and remote sensing applications
