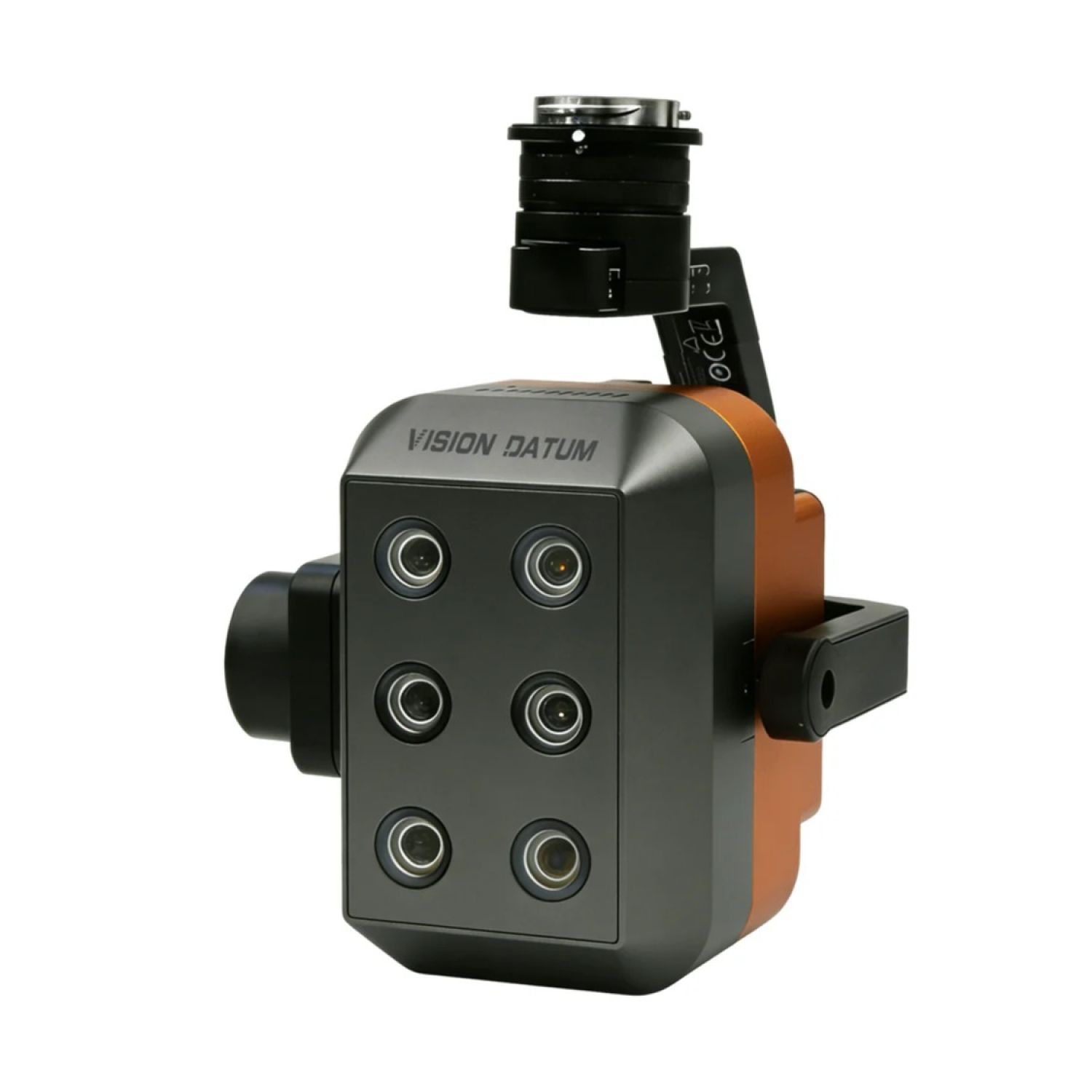

iRx4T — 1.3MP 4-Band Multispectral Camera

Description

iRx4T is a professional 4-band multispectral camera designed for DJI UAV platforms and aerial imaging applications such as precision agriculture, environmental monitoring, forestry and scientific research. It combines four multispectral bands at 555, 660, 720 and 840 nm with a high-resolution 8.3MP RGB camera in a compact UAV payload.

The multispectral sensor provides 1.3MP resolution, Global Shutter and 12-bit image depth, while the RGB camera provides 8.3MP visual imaging with Rolling Shutter and 8-bit output. 100 ms synchronization across all channels helps maintain accurate alignment between multispectral and RGB images during flight operations.

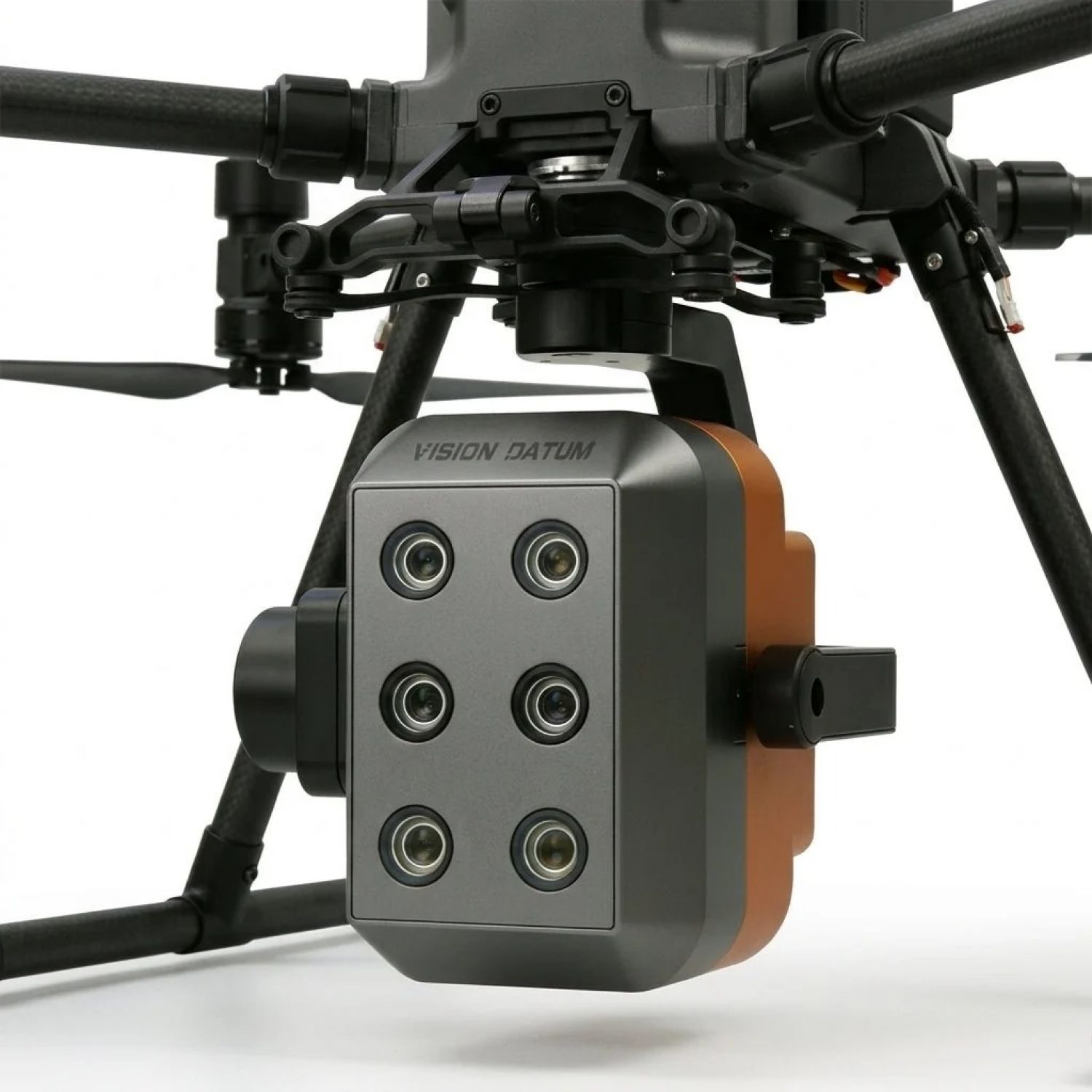

The iRx4T supports plug-and-play integration through DJI X-Port and is compatible with DJI M300 / M350 RTK UAV platforms. Its integrated 512GB SSD provides high-speed storage for large volumes of aerial imaging data. A durable sapphire optical window provides optical clarity and resistance for outdoor UAV operations.

Key Specifications:

• Model: iRx4T
• Camera type: 4-band multispectral + RGB camera
• Multispectral bands: 555 nm, 660 nm, 720 nm, 840 nm
• Multispectral sensor: 1/2", 1.3MP
• RGB sensor: 1/3", 8.3MP
• Shutter: MS — Global Shutter / RGB — Rolling Shutter
• Image depth: MS — 12-bit / RGB — 8-bit
• FOV: MS — 54.2° × 44.5° / RGB — 49.1° × 28.8°
• GSD @ 120m: MS — 9.6cm / RGB — 2.86cm
• Coverage @ 120m: MS — 123 × 98m / RGB — 109 × 61m
• Synchronization: 100ms
• Interface/mount: DJI X-Port
• Power consumption: ≤43W
• Image format: MS — 16-bit Raw TIFF / RGB — 8-bit JPEG
• Storage: 512GB SSD
• Parameter configuration: DJI Pilot
• Capture trigger: Time trigger
• Capture frequency: up to 10Hz
• Operating temperature: -10°C to +50°C
• Storage temperature: -30°C to +70°C
• Relative humidity: ≤85%, non-condensing
• Dimensions: 182 × 169 × 129mm
• Weight: ≤900g
• Compatible platforms: DJI M300 / M350 RTK
• Optical protection: Sapphire optical window

Advantages:

• Combines 4 multispectral bands with an RGB camera
• Supports detailed vegetation and crop monitoring
• Captures RGB and multispectral imagery in one payload
• 100ms synchronization across imaging channels
• Suitable for precision agriculture and crop health monitoring
• Applicable to environmental and forestry research
• Supports UAV remote sensing and aerial mapping
• Plug-and-play integration with DJI M300/M350 RTK
• 512GB SSD for high-capacity aerial data storage
• Durable sapphire optical window for outdoor operations
