iRx6T — 1.3MP 6-Band Multispectral NIR Camera

Description

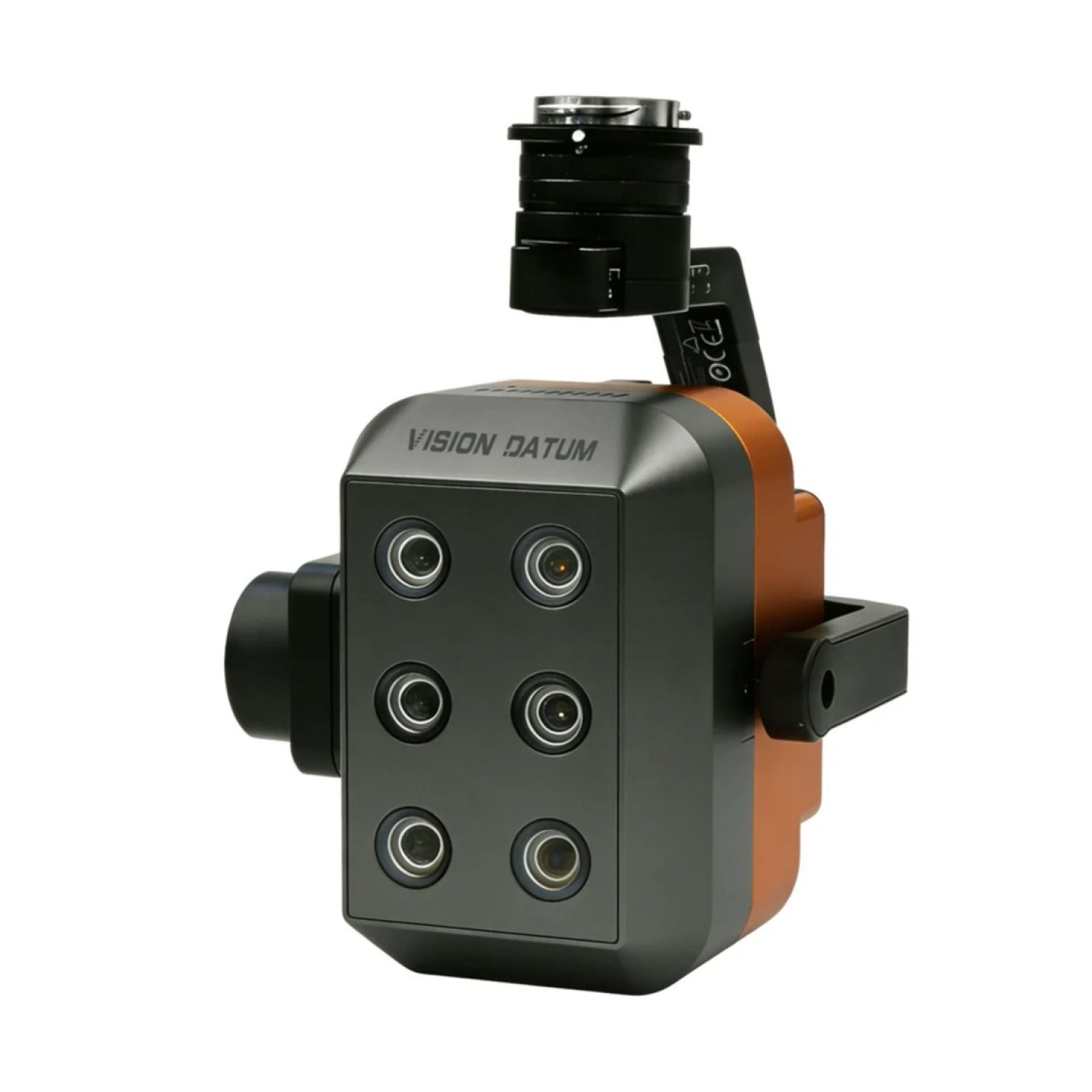

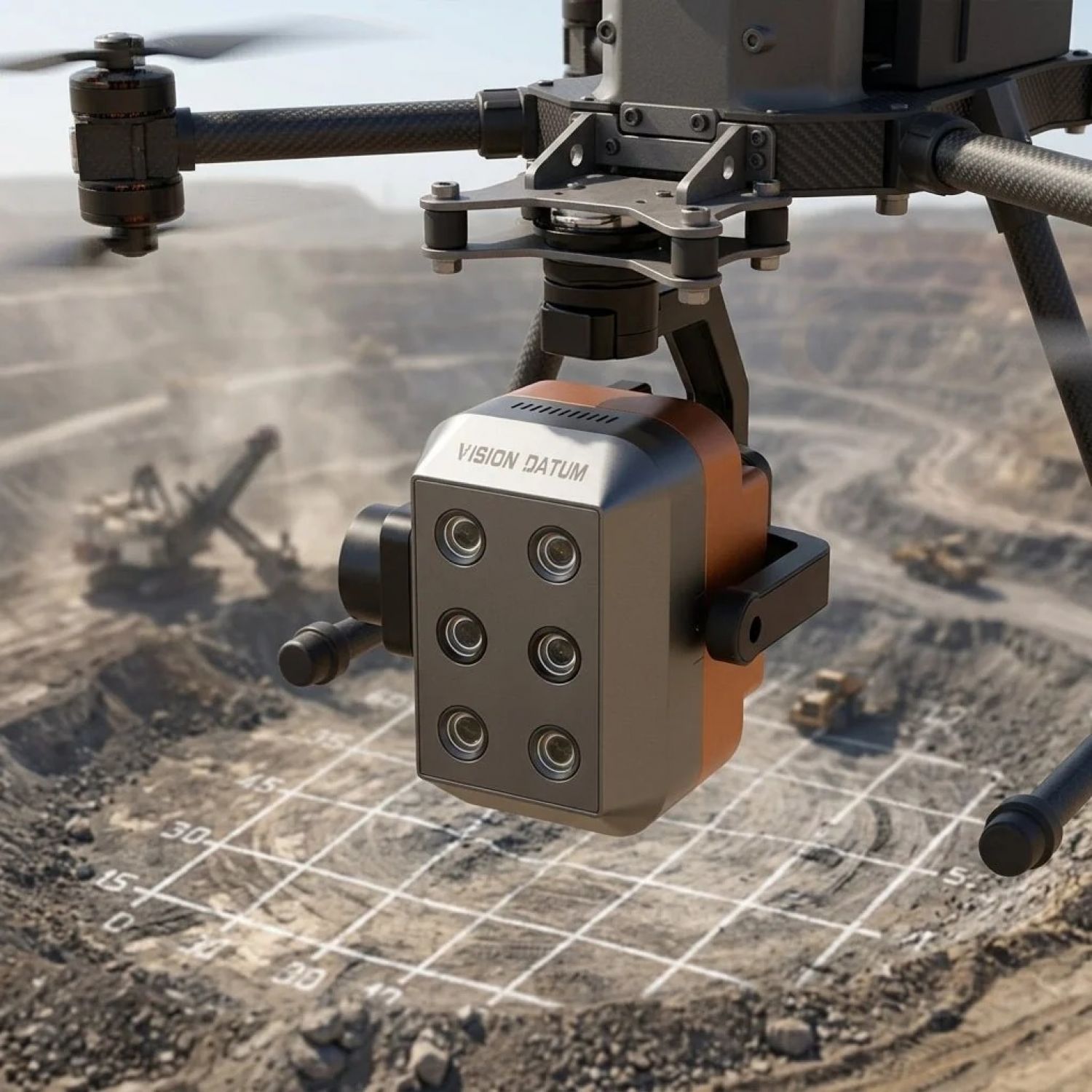

iRx6T is a high-performance 6-band multispectral NIR camera designed for professional UAV and drone platforms. It captures spectral data at 450, 555, 660, 720, 750 and 840 nm, providing detailed information for crop monitoring, vegetation analysis, environmental monitoring and remote sensing.

With 1.3MP effective pixels per band, Global Shutter and 12-bit image depth, the iRx6T provides high-quality aerial imaging and multispectral data acquisition. Fast synchronization across all spectral channels helps maintain accurate data alignment during UAV flight missions.

The camera is compatible with DJI M300 and M350 RTK platforms and features an X-Port interface. Parameters can be configured through DJI Pilot, while a standard 512GB SSD stores 16-bit Raw TIFF images with GPS metadata for professional aerial mapping and analysis workflows.

Key Specifications:

• Model: iRx6T
• Camera type: 6-band multispectral NIR camera
• Effective pixels: 1.3MP
• Sensor size: 1/2"
• Shutter: Global Shutter
• Image depth: 12-bit
• Spectral bands: 450 nm, 555 nm, 660 nm, 720 nm, 750 nm, 840 nm
• FOV: 54.2° × 44.5°
• GSD: 9.6 cm @ 120 m
• Coverage width: 123 × 98 m @ 120 m
• Mounting/interface: X-Port
• Power consumption: ≤43W
• Image format: 16-bit Raw TIFF with GPS metadata
• Storage: 512GB SSD
• Parameter configuration: DJI Pilot
• Capture trigger: Timer
• Capture frequency: up to 10Hz
• Operating temperature: -10°C to +50°C
• Storage temperature: -30°C to +70°C
• Relative humidity: ≤85%, non-condensing
• Dimensions: 182 × 169 × 129 mm
• Weight: ≤940g
• Compatible platforms: DJI M300 / M350 RTK

Advantages:

• Captures data across 6 multispectral bands
• Combines visible and NIR spectral information
• Global Shutter for accurate aerial imaging
• Suitable for NDVI, NDRE and other vegetation index analysis
• Supports precision agriculture and crop monitoring
• Suitable for environmental and forestry monitoring
• Enables UAV-based remote sensing and aerial mapping
• Compatible with DJI M300/M350 RTK platforms
• 512GB SSD storage with GPS-enabled Raw TIFF imaging
