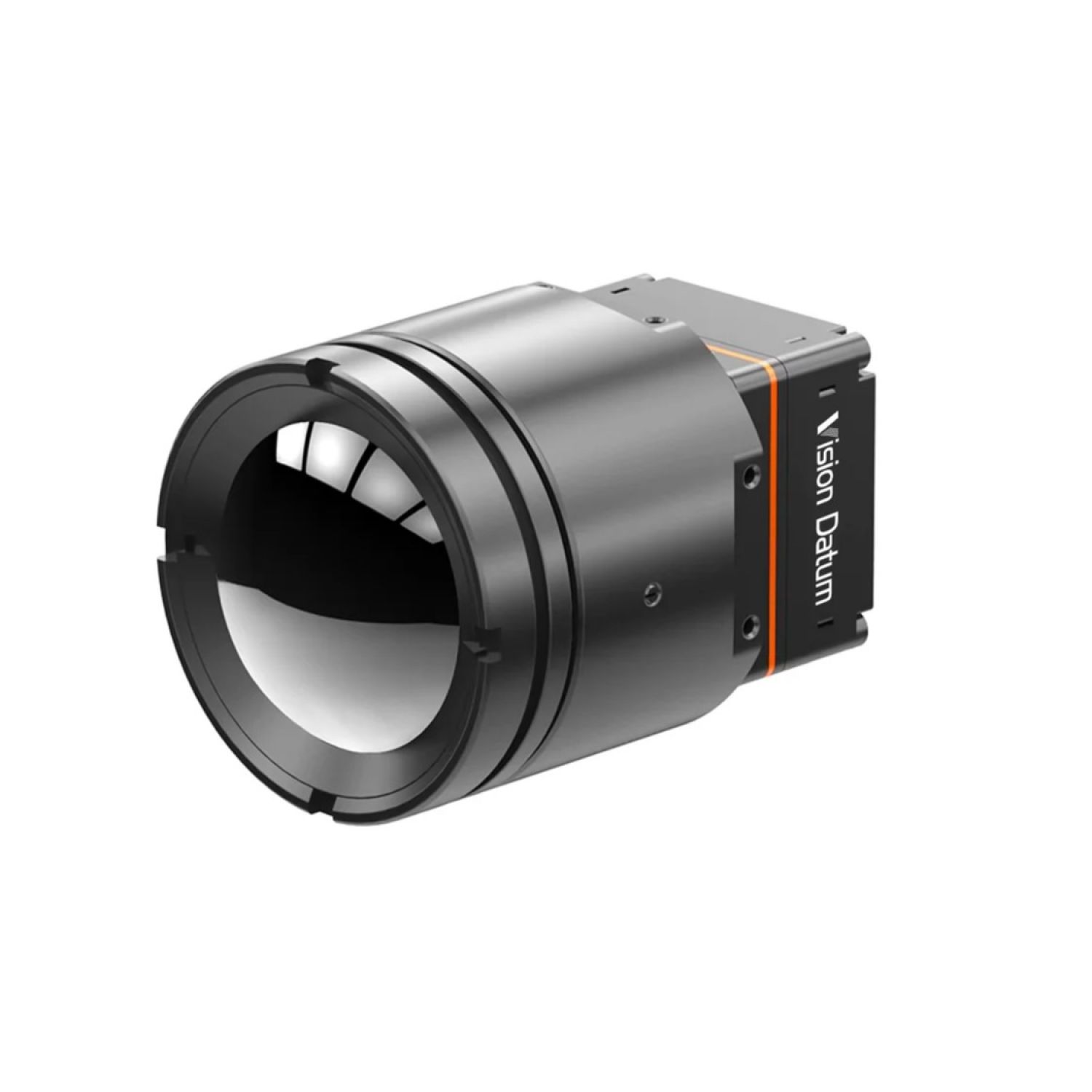

iVaster Micro — LWIR Thermal Camera, 256×192–1280×1024

Description

The iVaster Micro is a compact and lightweight series of LWIR thermal camera modules operating in the 8000–14000 nm spectral range, designed for UAV integration, industrial monitoring, thermal imaging and remote sensing applications. The series features a 12 μm pixel size and multiple resolution options ranging from 256×192 to 1280×1024.

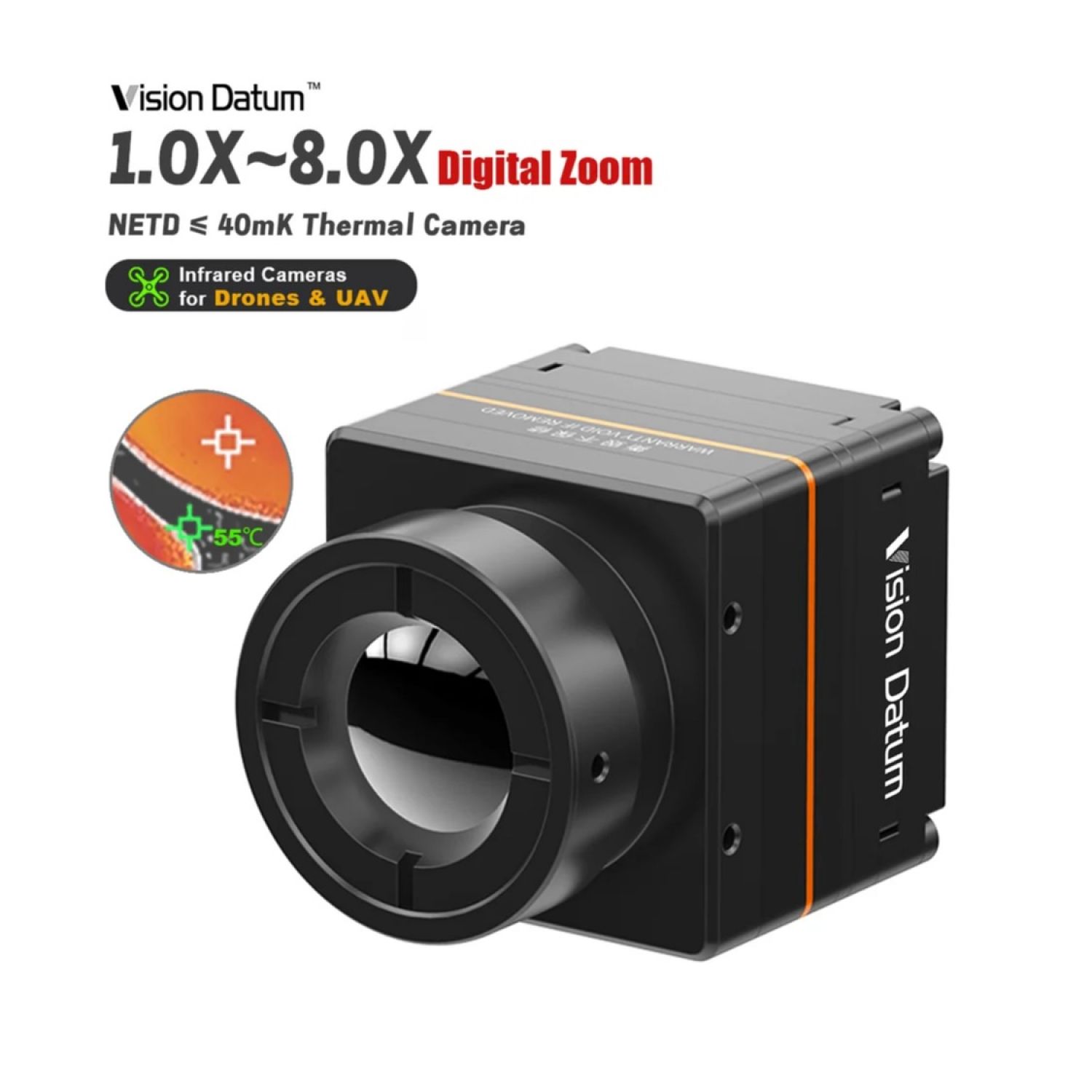

Selected iVaster Micro models support temperature measurement and can provide temperature information when the device starts. Depending on the model, frame rates range from 25 to 60 FPS, while selected Pro and HPro versions provide 1.0–4.0x or 1.0–8.0x digital zoom.

SDK support for Windows, Linux and Android simplifies software development and integration into specialized systems. Depending on the selected model, available interfaces may include USB, MIPI, LVCMOS, BT.656, BT.1120, CameraLink, HDMI and analog interfaces.

Key Specifications:

• Series: iVaster Micro
• Spectral range: 8000–14000 nm
• Pixel size: 12 μm
• Module weight: less than 5 g
• Resolutions: 256×192, 384×288, 640×512, 1280×1024
• Frame rate: 25–60 FPS, depending on model
• Temperature measurement: model-dependent
• Digital zoom: 1.0–4.0x or 1.0–8.0x, depending on model
• SDK: Windows / Linux / Android
• Interfaces: model-dependent USB 2.0, USB 3.0 Type-C, MIPI, LVCMOS, BT.656, BT.1120, CameraLink, HDMI and analog
• Applications: UAVs, thermal monitoring, remote sensing and specialized systems

Advantages:

• LWIR thermal imaging
• Ultra-lightweight modules weighing less than 5 g
• Multiple resolution and frame-rate configurations
• Temperature measurement available on selected models
• Digital zoom on selected Pro and HPro models
• Windows, Linux and Android SDK support
• Suitable for UAV and compact system integration
• Suitable for industrial and specialized thermal monitoring applications
