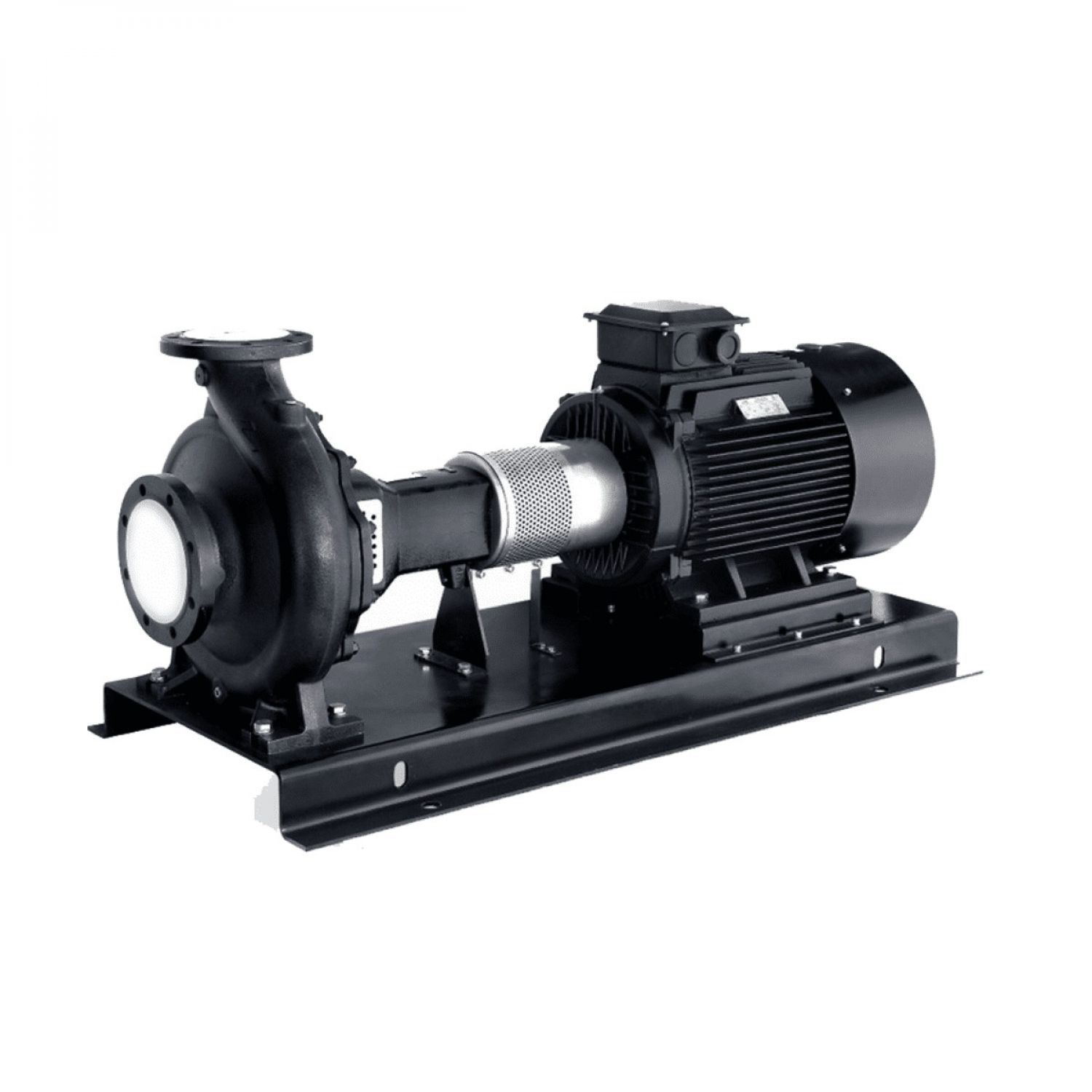

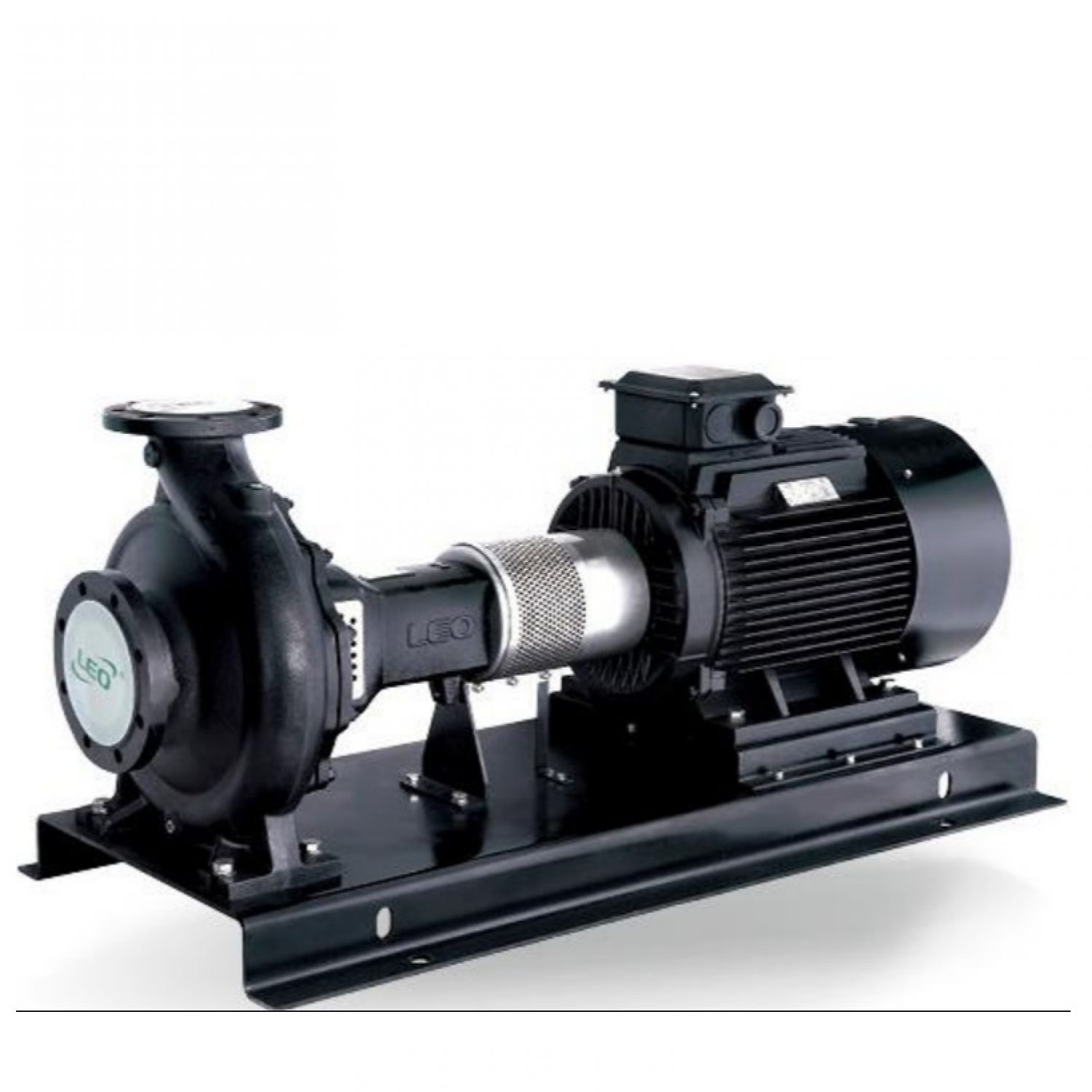

LEO LEN125-80-200D Electric Water Pump

Description

The LEO LEN125-80-200D Electric Water Pump is an industrial end-suction centrifugal pump designed for transferring large volumes of clean water and non-aggressive liquids with similar physical and chemical properties. It is widely used in municipal and industrial water supply, central heating systems, pressure boosting, HVAC, fire protection, and industrial process applications. Manufactured in accordance with EN733/DIN24255 standards, the pump features a durable cast iron body, an AISI 304 stainless steel shaft, a 100% copper-wound motor, and a high-efficiency hydraulic design.

Technical Specifications:

• Brand: LEO
• Model: LEN125-80-200D
• Product Type: End-Suction Centrifugal Electric Water Pump
• Power: 5.5 kW
• Voltage: 380 V
• Frequency: 50 Hz
• Rated Flow Rate: 100 m³/h
• Maximum Flow Rate: 120 m³/h
• Rated Head: 14.5 m
• Maximum Head: 70 m
• NPSH: 2 m
• Pump Body: Cast Iron
• Impeller: Cast Iron
• Shaft Material: AISI 304 Stainless Steel
• Mechanical Seal: Carbon / Silicon Carbide
• Protection Rating: IP55
• Insulation Class: F
• Maximum Liquid Temperature: +90°C
• Maximum Working Pressure: 16 bar

Advantages:

• Manufactured to EN733/DIN24255 standards
• Flow rate up to 120 m³/h
• Maximum head up to 70 meters
• Heavy-duty cast iron construction
• AISI 304 stainless steel shaft
• Carbon/Silicon Carbide mechanical seal
• 100% copper-wound motor
• Ideal for industrial water supply, HVAC, pressure boosting, fire protection, and process systems.
