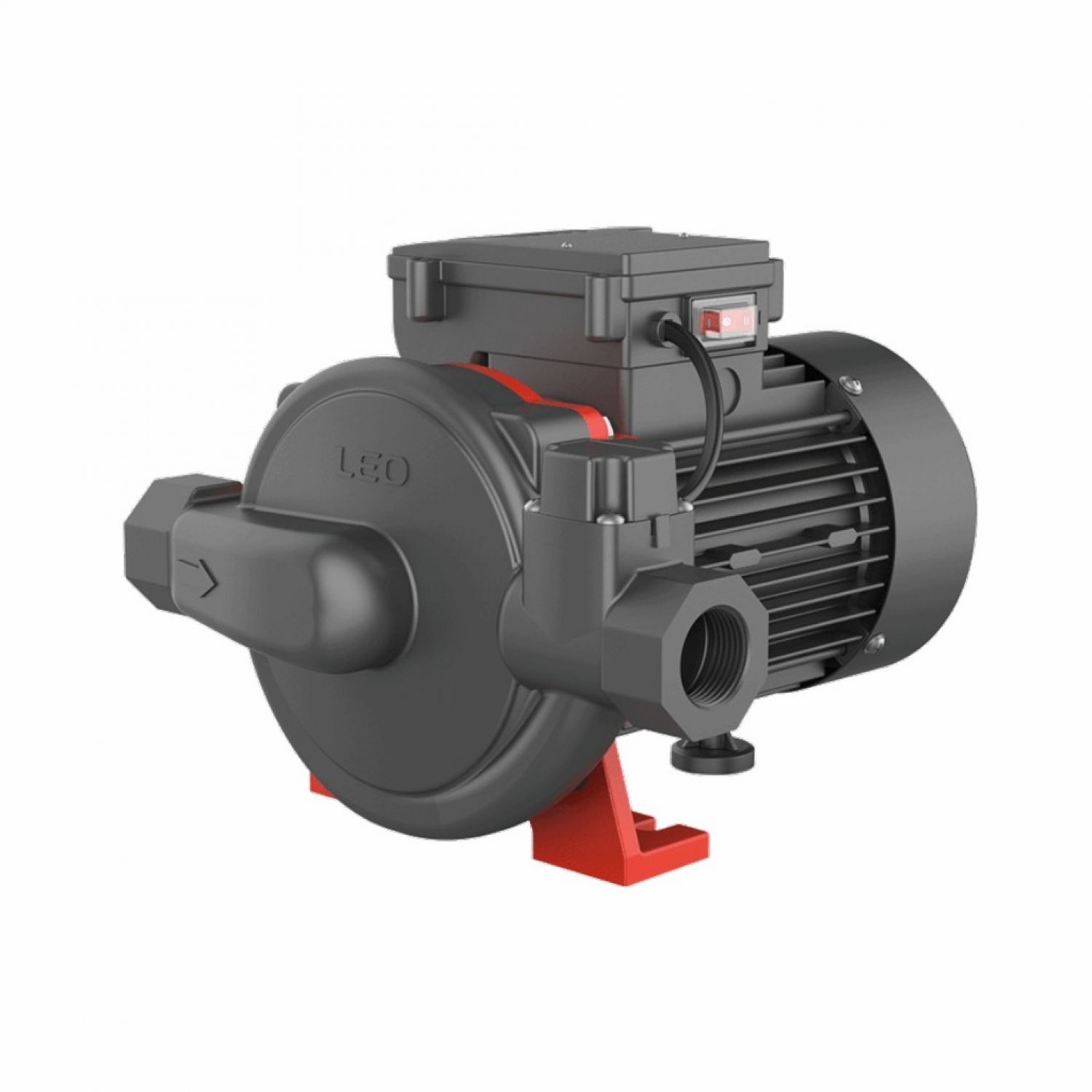

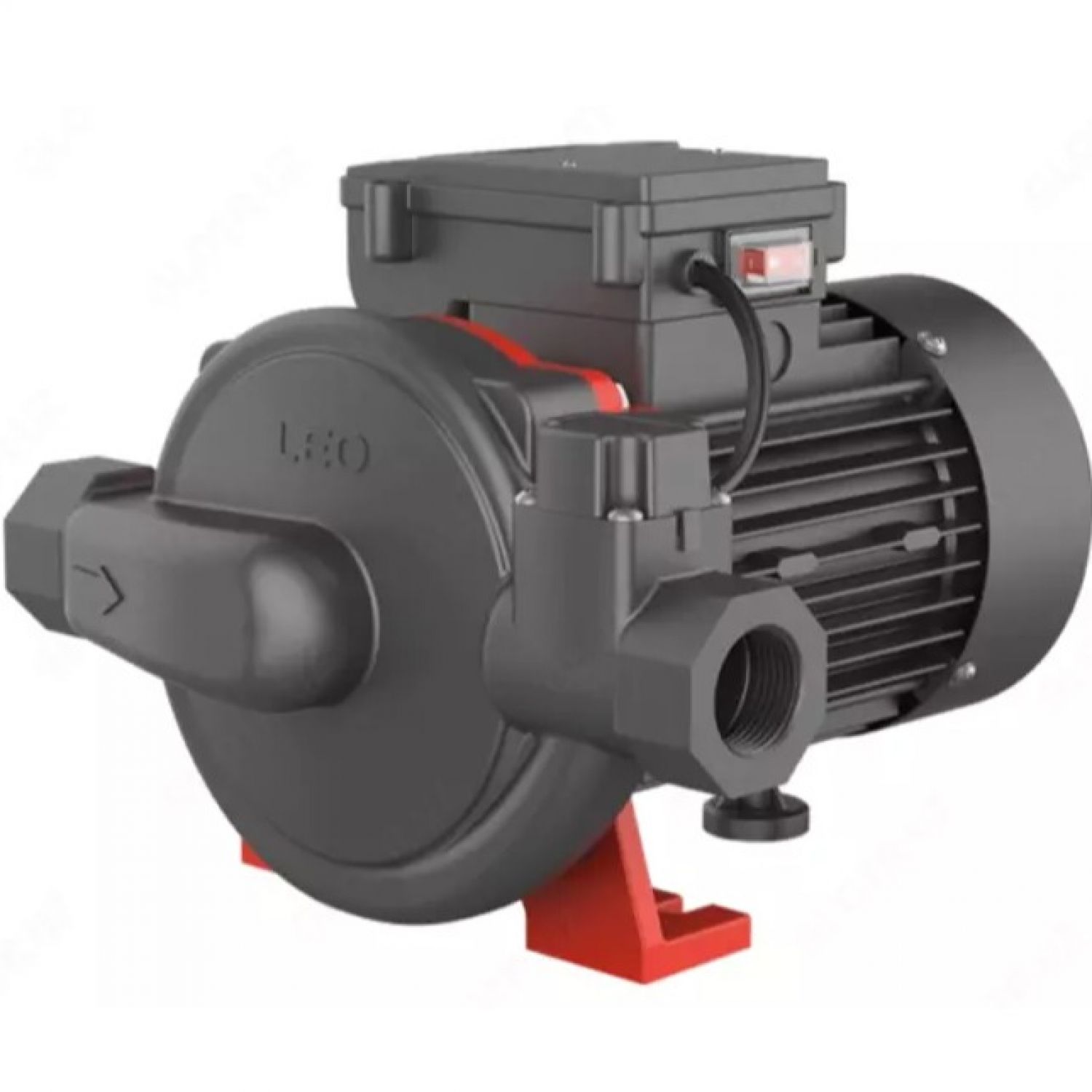

LEO LPm550 Electric Circulation Pump

Description

The LEO LPm550 Electric Circulation Pump is a flanged circulation pump designed for forced circulation of heating media in central heating and hot water systems. It is widely used in residential houses, apartment buildings, offices, hotels, commercial buildings, and industrial heating systems. The pump features a durable cast iron body, a stainless steel shaft, a technopolymer impeller, ceramic/graphite bearings, and a 100% copper-wound motor, ensuring quiet operation and long service life.

Technical Specifications:

• Brand: LEO
• Model: LPm550
• Product Type: Electric Circulation Pump
• Power: 550 W (0.55 kW)
• Voltage: 220 V
• Frequency: 50 Hz
• Maximum Flow Rate: 333 L/min (20 m³/h)
• Maximum Head: 19 m
• Maximum Working Pressure: 10 bar
• Pump Body: Cast Iron
• Shaft Material: Stainless Steel
• Impeller: Technopolymer
• Sleeve: Stainless Steel
• Bearings: Ceramic / Graphite
• Protection Rating: IP44
• Insulation Class: F
• Maximum Liquid Temperature: +110°C
• Motor Winding: 100% Copper

Advantages:

• Flanged circulation pump design
• Flow rate up to 333 L/min
• Maximum head up to 19 meters
• Heavy-duty cast iron body
• Stainless steel shaft
• Ceramic/graphite bearings
• 100% copper-wound motor
• Ideal for heating and hot water circulation systems in residential and commercial applications.
