Description

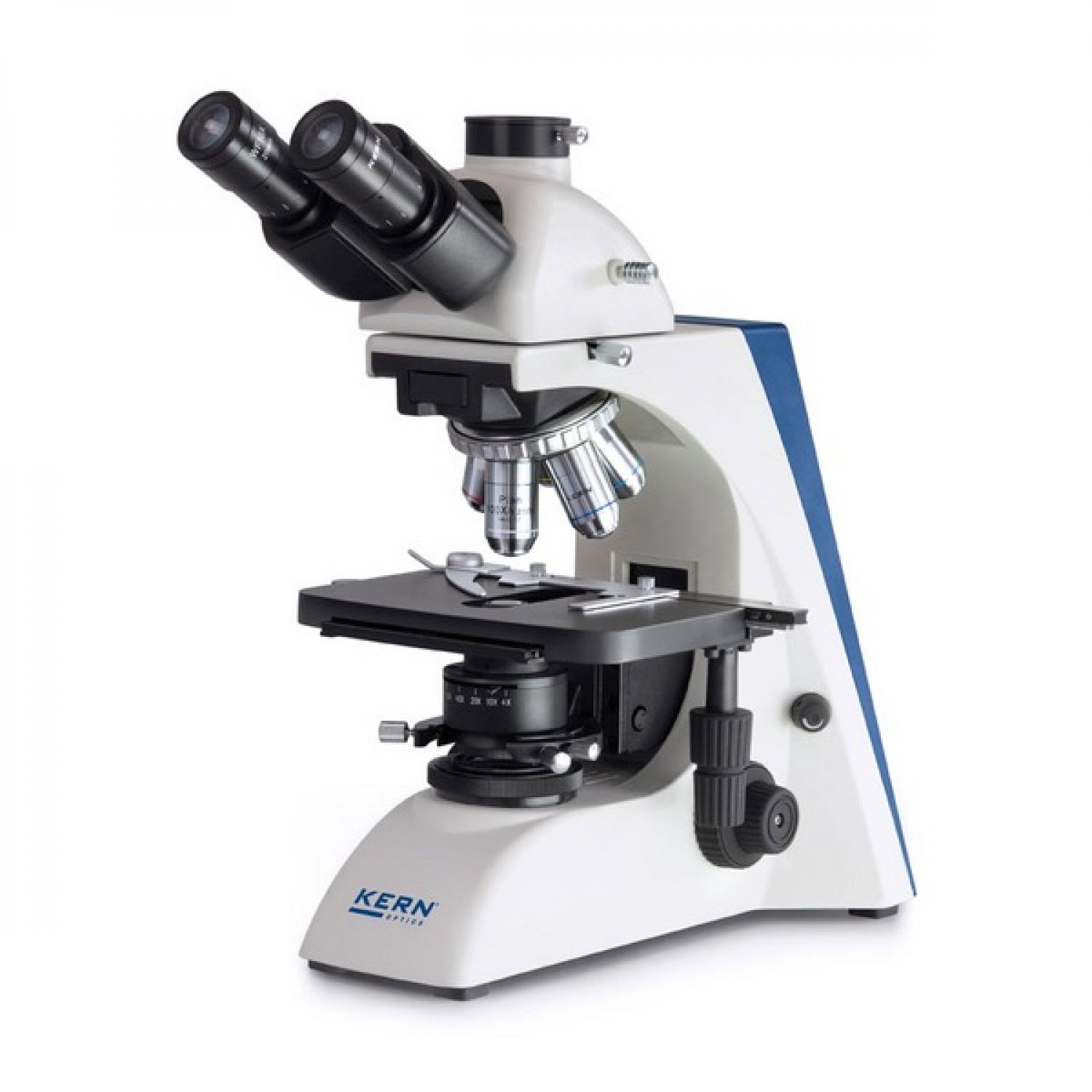

Kern OBN 132 is a trinocular compound microscope with an infinity optical system. It features 10x ocular magnification and a 20 mm field of view. The standard objectives include 4×, 10×, 20×, 40×, and 100×. Infinity Plan lenses provide high precision imaging. It has 5 nosepiece screw-in locations. Illumination is transmitted light with a 20 W halogen lamp. The condenser is of Abbe type, with a 1.25 aperture and centerable mounting. The focusing mechanism is coaxial coarse and fine drive, with a minimum fine focus increment of 0.002 mm. Dimensions are 390×200×400 mm.
-
Optical system: Infinity
-
Tube type: Trinocular
-
Ocular magnification: 10x
-
Ocular visual field: 20 mm
-
Standard objectives: 4×, 10×, 20×, 40×, 100×
-
Lens quality: Infinity Plan
-
Nosepiece screw-in locations: 5
-
Illuminance: Transmitted light
-
Illumination intensity (transmitted light): 20 W
-
Illumination type (transmitted light): Halogen
-
Condenser type: Abbe
-
Condenser aperture: 1.25
-
Condenser mounting: Centerable
-
Focusing mechanism: Coaxial coarse and fine drive
-
Fine focus minimum adjustment: 0.002 mm
-
Dimensions (W×D×H): 390×200×400 mm
-
GTIN/EAN number: 4045761163102
