Description

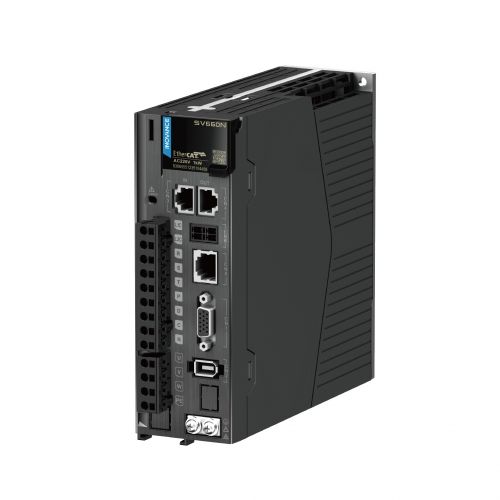

SV660NT3R5I-FS AC servo drive
"The SV660N series high‑performance AC servo drive covers a power range from 50 W to 7.5 kW. It supports EtherCAT communication protocol and carries Ethernet communication interfaces to work with the host controller for a networked operation of multiple servo drives.”
The SV660N series servo drive supports stiffness level setting, inertia auto‑tuning and vibration suppression, which simplify the operation process. It allows a quiet and stable operation together with the MS1 series high‑response servo motor equipped with a 23‑bit single‑turn encoder or 23‑bit multi‑turn absolute encoder.”
| Protection | IP20 |
| Size | Size C |
| Rated Voltage | 400 V three phase |
| Axes Control | Single-Axis |
| Communications | EtherCAT |
| Range Power | Up tp 750 W |
| Rated Power | 0,85 kW |
| Device profile | CiA® 402 |
| Rated Current | 3,5 Arms |
| peak current | 11 Arms |
| SAFETY | STO Safe Torque Off SIL3 |
| Feedback | Absolute encoder |
| Cycle time | 125 μs |
| Carrier frequency | 12 kHz |
| Current loop cycle time | 1.6 μs |
| Speed loop cycle time | 62.5 μs |
| Position loop cycle time | 62.5 μs |
| Current loop | 4.5 kHz |
| Dimensions H x W x D | 170X55X173 mm |
| Appropriate External EMC filter (C2) | FN 3258-7-44 |
| Appropriate External AC Input Reactor | LR3 40-3/4 |
