Description

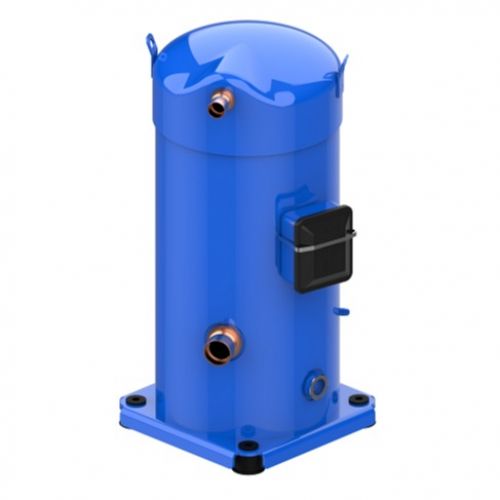

Danfoss SZ148‑4VAI
Hermetic scroll compressor. Fixed-speed operation; supports refrigerants R134a, R404A, R407C, R513A.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SZ148‑4VAI / SZ148T4VC |
| Compressor Type | Scroll |
| Voltage / Phase / Frequency | 380–415 V / 3Ph / 50 Hz 460 V / 3Ph / 60 Hz |
| Refrigerants | R134a, R404A, R407C, R513A |
| Oil Type | POE (160SZ) |
| Oil Charge | 3.60 L |
| Displacement | 199 cm³ |
| Max Refrigerant Charge | 12.50 kg |
| Maximum Operating Current (MOC) | 29 A |
| RLA | 22.9 A |
| Locked Rotor Amps (LRA) | 145 A |
| Speed | 2,900 rpm (50 Hz) / 3,500 rpm (60 Hz) |
| Diameter / Height | 266 mm / 591 mm |
| Discharge Connection Height | 556 mm |
| Protection Class | IP54 |
| Max High-Side Pressure | 34.30 bar |
| Max Low-Side Pressure | 25.00 bar |
