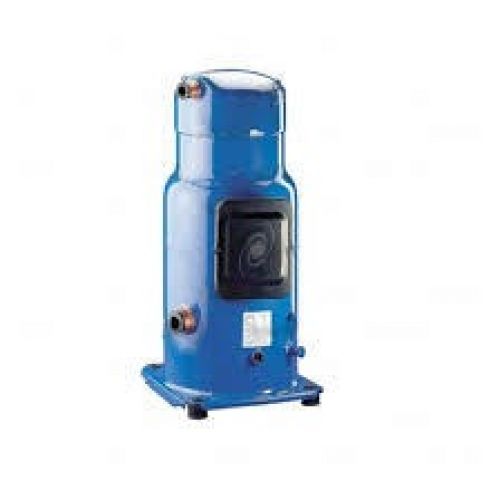

Danfoss SZ160‑4RAI
Hermetic scroll compressor. Fixed‑speed operation; compatible with refrigerants R134a, R404A, R407C.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SZ160‑4RAI |
| Compressor Type | Scroll |
| Voltage / Phase / Frequency | 380–415 V / 3Ph / 50 Hz 460 V / 3Ph / 60 Hz |
| Refrigerants | R134a, R404A, R407C |
| Oil Type | POE (160SZ) |
| Oil Charge | 4.0 L |
| Displacement (swept volume) | 216.6 cm³ |
| Max Refrigerant Charge | 12.5 kg |
| Maximum Operating Current (MOC) | 29 A |
| Locked Rotor Amps (LRA) | 150 A |
| Speed | 2,900 rpm / 3,500 rpm |
| Diameter / Height | 266 mm / 631 mm |
| Protection Class | IP54 |
| Max High‑side Pressure | 34.3 bar |
| Max Low‑side Pressure | 25.0 bar |
