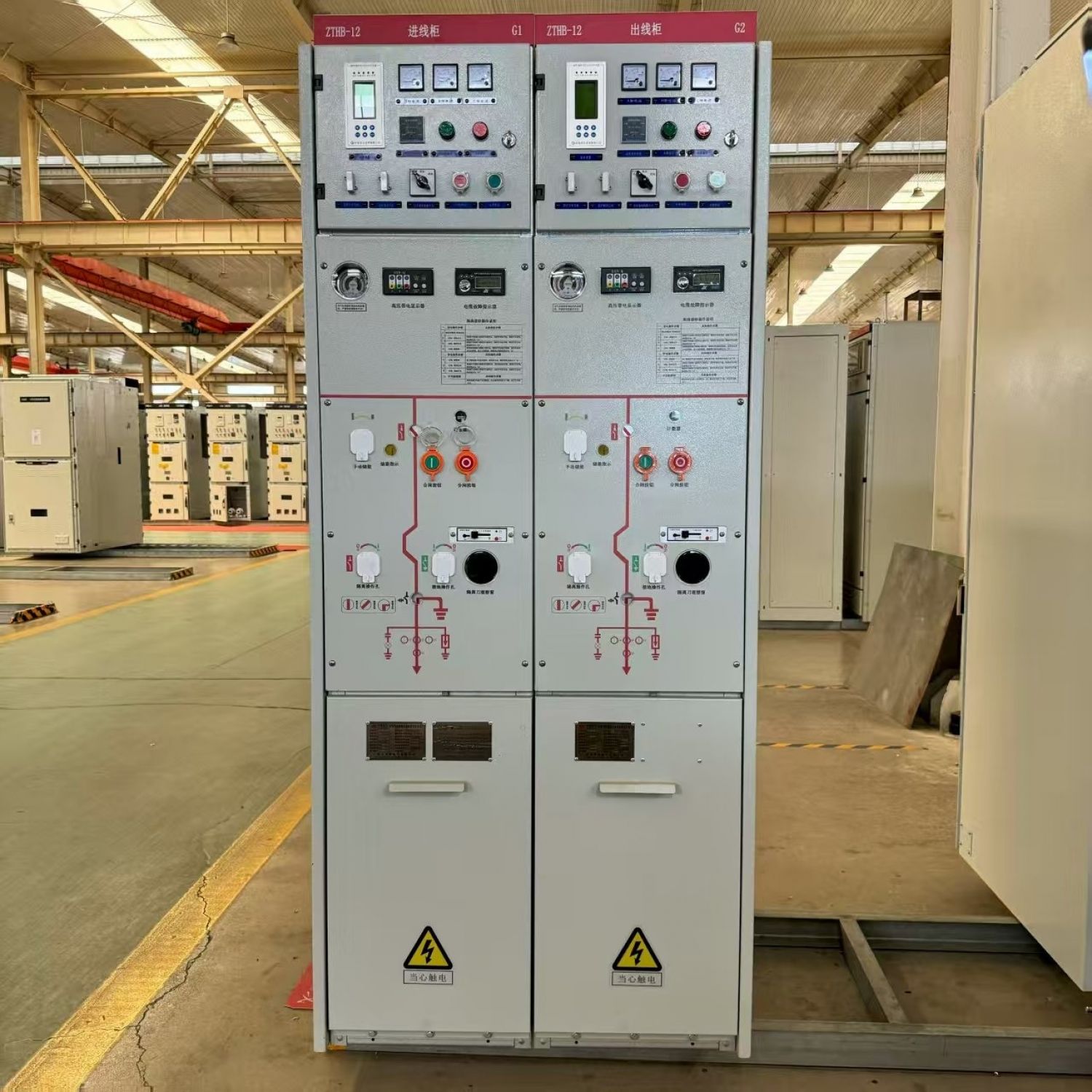

ZTEM6 SF6-Insulated Metal-Enclosed Switchgear
Zhongtie electric
> 24 Hrs
100%
Description
ZTEM6 is metal-enclosed switchgear with SF6 gas insulation, designed for safe and reliable medium-voltage power distribution systems. Its fully sealed and insulated construction provides protection against moisture, dust, sand and other environmental influences. The compact modular design allows flexible configuration using copper busbars, making the equipment suitable for industrial facilities, substations, mines and demanding environmental conditions.
Key Specifications:
- Series: ZTEM6
- Type: Metal-enclosed switchgear;
- Insulation medium: SF6 gas;
- Voltage class: 12 / 24 kV;
- Frequency: 50 Hz;
- Rated current: 1250 A;
- Construction: Fully sealed and fully insulated;
- Operating temperature: −40°C to +40°C;
- Installation altitude: up to 2000 m above sea level;
- Minimum module width: 325 mm;
- Power-frequency withstand voltage: 95 kV;
- Impulse withstand voltage: 215/185 kV;
- Flexible modular configuration using copper busbars;
- Mechanical and electrical interlocking systems;
- Fully sealed enclosure.
Advantages:
- High electrical insulation performance;
- Fully sealed construction protects against environmental conditions;
- Suitable for humid, dusty and sandy environments;
- Compact and modular design;
- Reduced maintenance requirements;
- Mechanical and electrical interlocks improve operational safety;
- Suitable for mines and coastal areas;
- Designed for industrial and medium-voltage power distribution systems.
Applications:
Electrical substations, industrial facilities, medium-voltage distribution systems, mines and underground facilities, coastal installations and areas exposed to moisture, dust and sand.
