Description

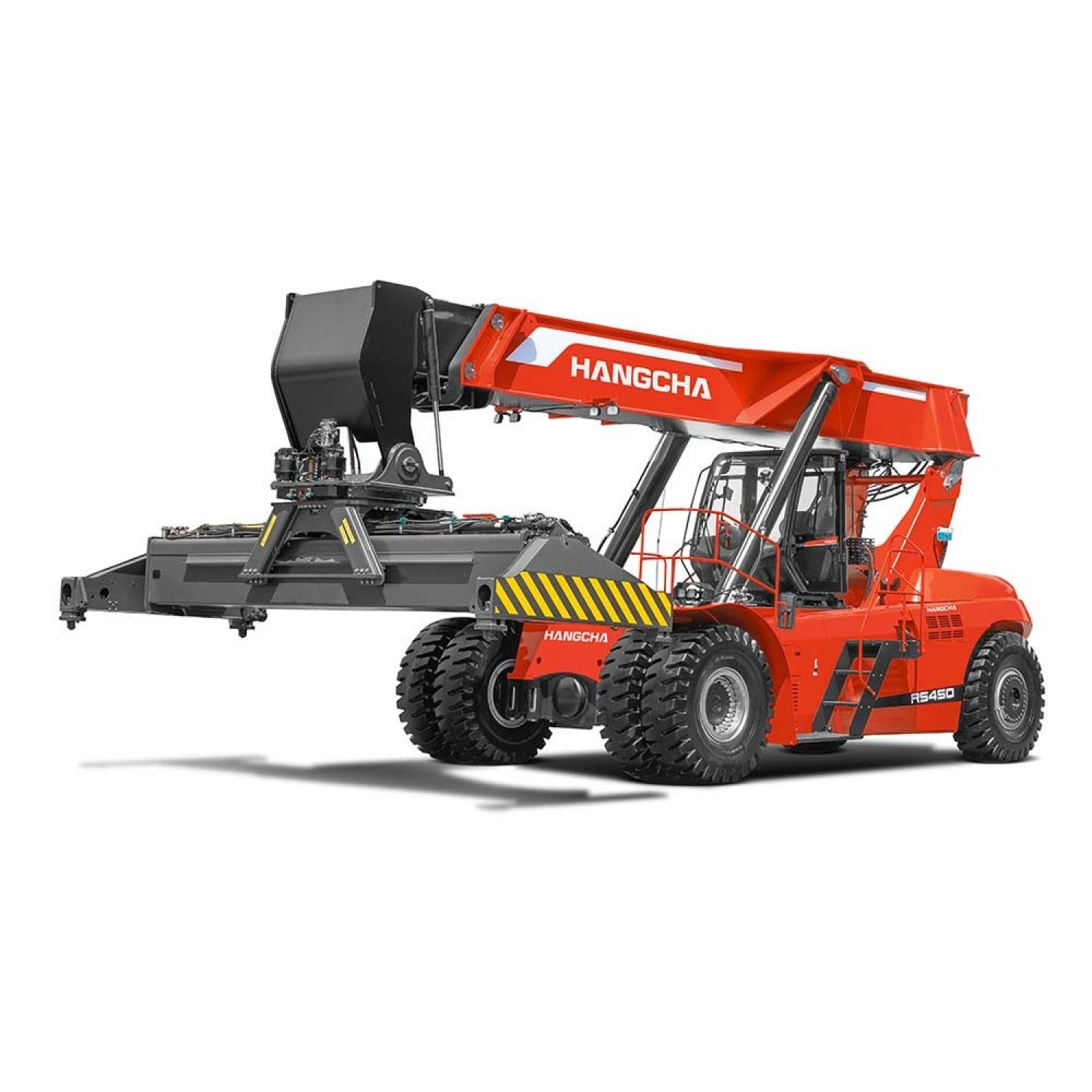

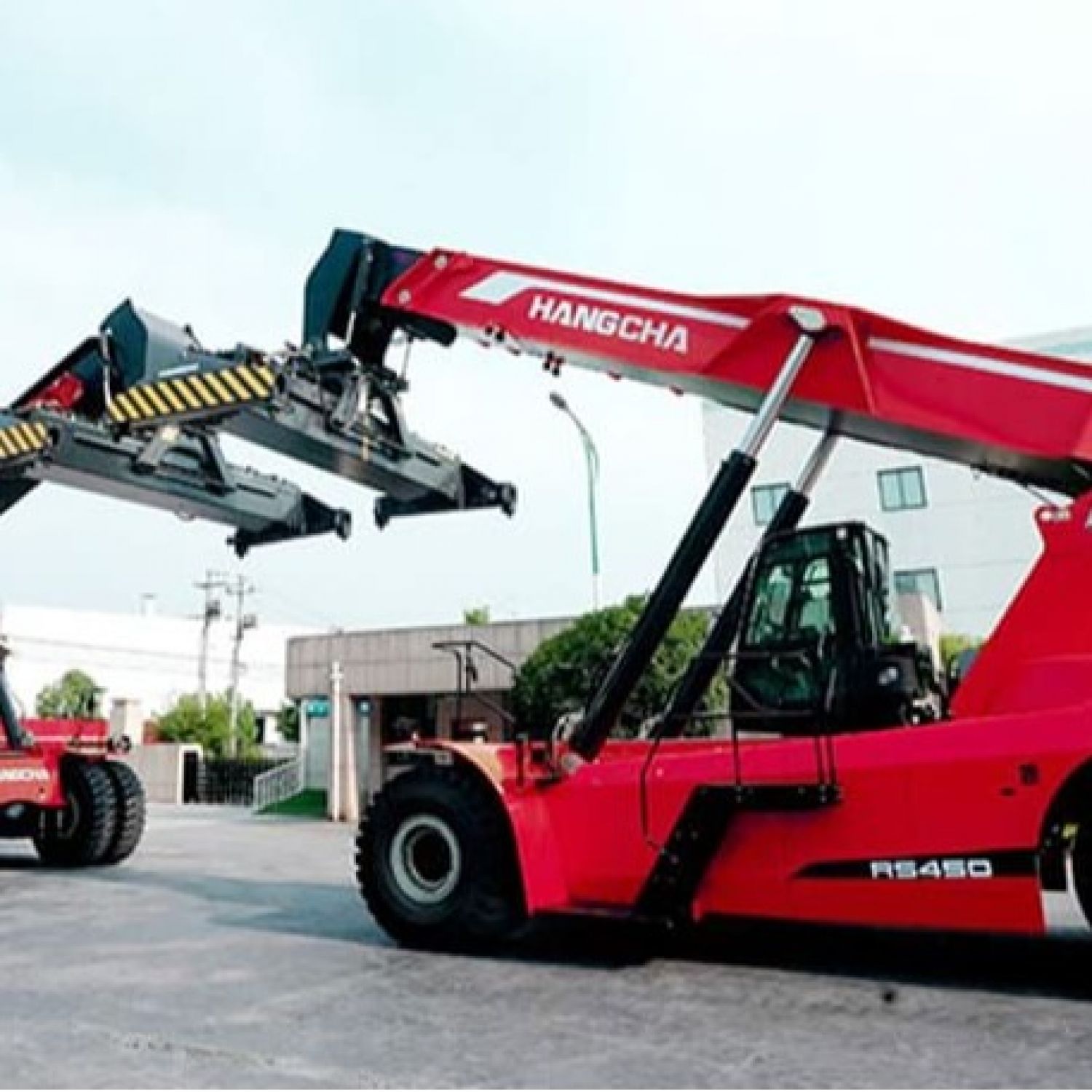

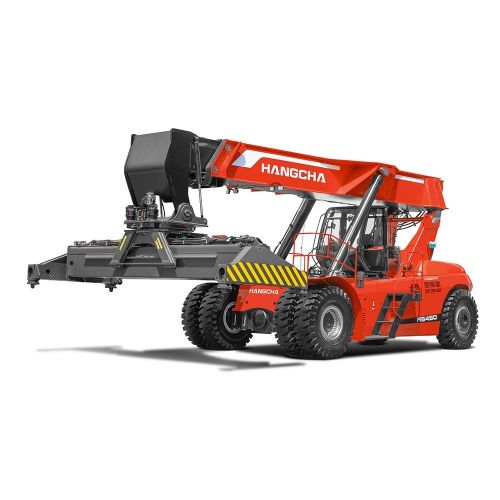

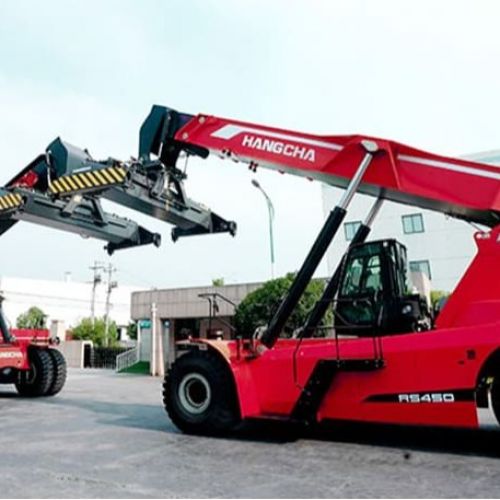

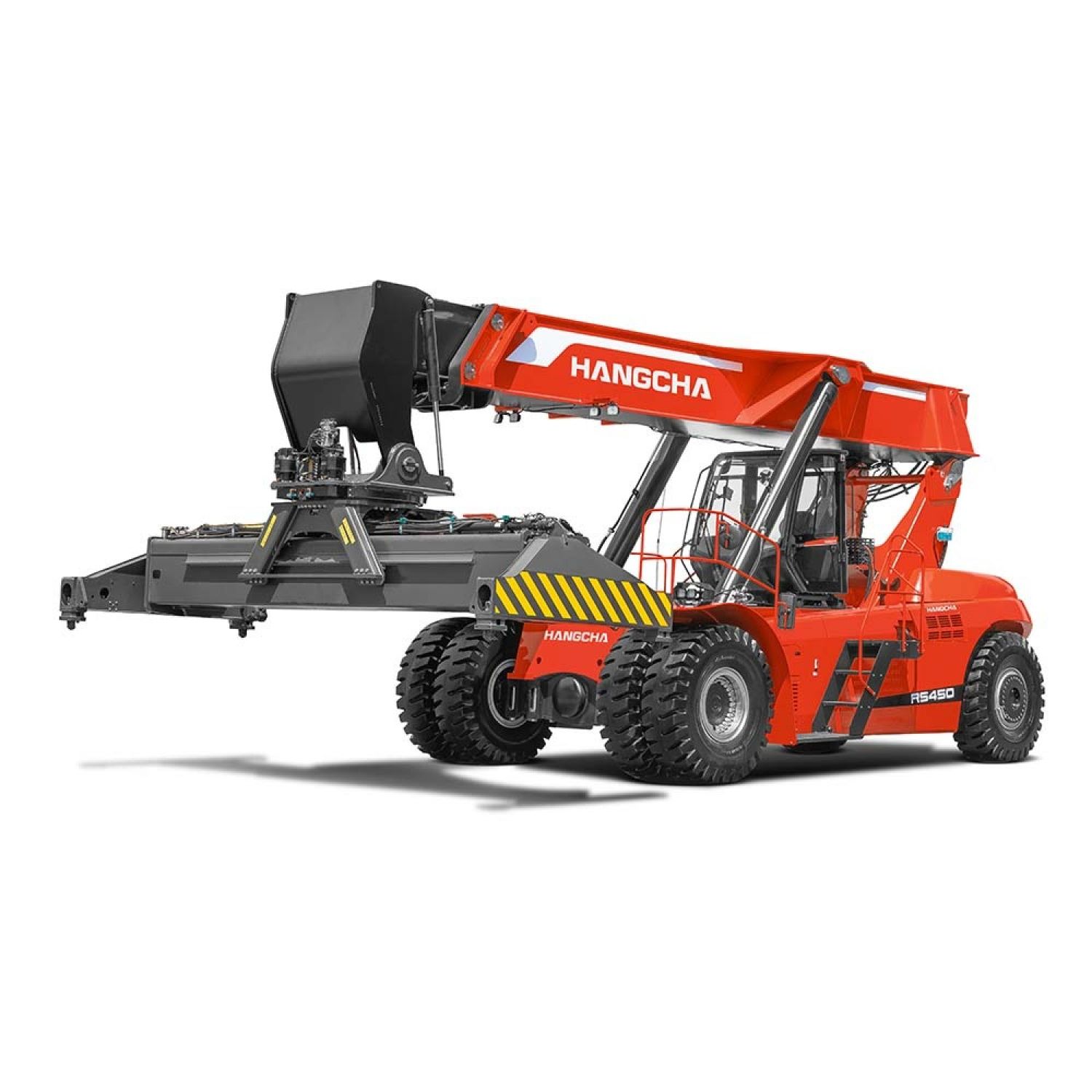

The RS4531CH-XRW61 RICHSTACKER is a new product based on the X-Series platform.
This model inherits the X-Series styling, boasting a modern, premium, and robust appearance. Using key components from leading global manufacturers, it delivers high performance and guaranteed quality. Advanced control technologies ensure safety, reliability, convenience, and efficiency.

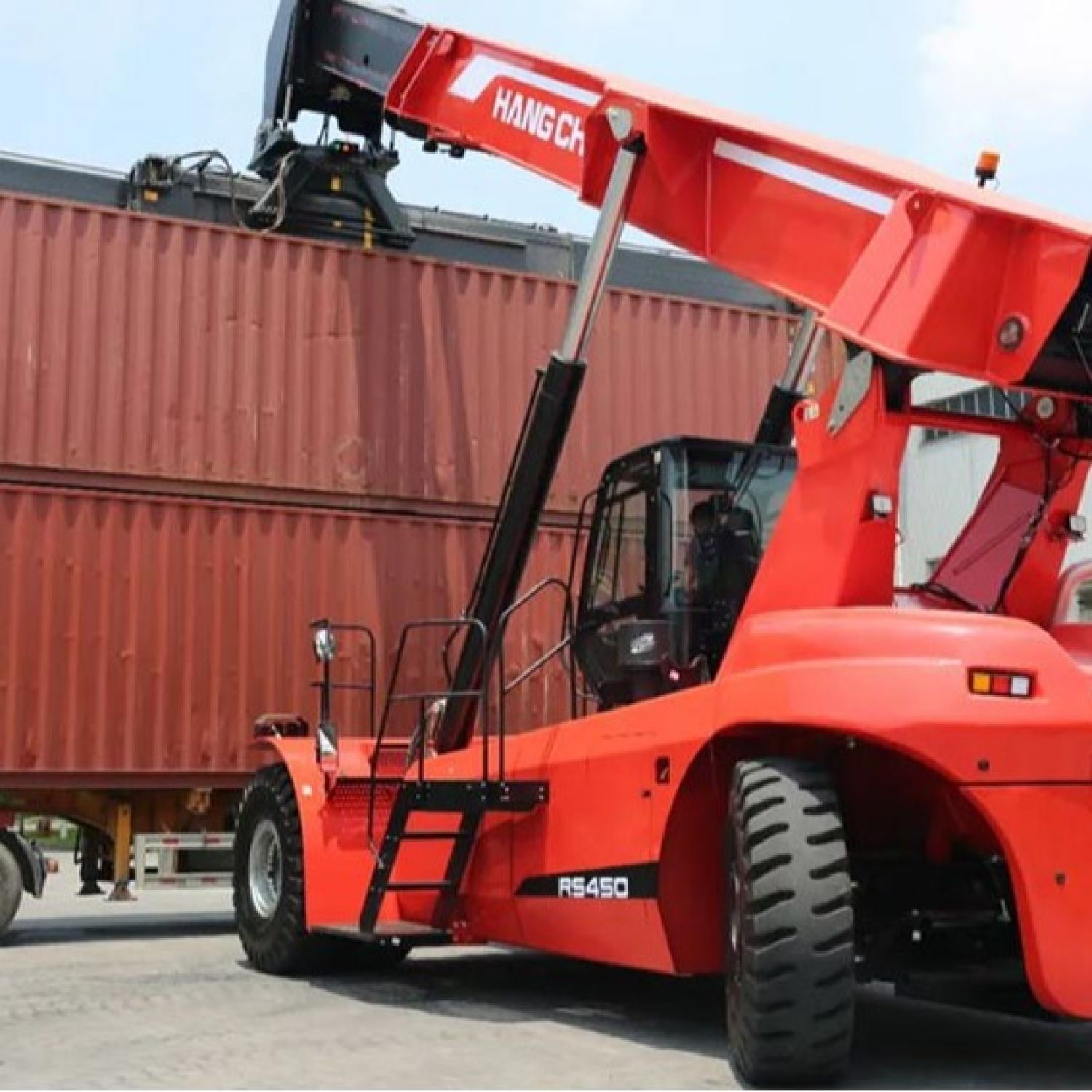

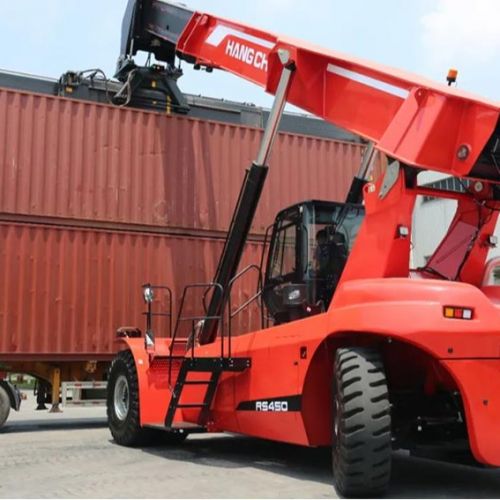

This machine is primarily used for loading, handling, and stacking 20- and 40-foot ISO containers in ports, quays, rail and road terminals, warehouses, and other facilities. It is suitable for heavy-duty and long-term operation.

Features:
Safety:
Advanced safety technologies are employed, including a seat position sensor, dynamic rollover protection, dual longitudinal protection, start-stop protection, and other systems to ensure continuous safety.

Maintenance:
Quick-release engine hood for easy maintenance.
All service points are conveniently and safely located.
The electrical control cabinet is designed for simple and efficient maintenance.

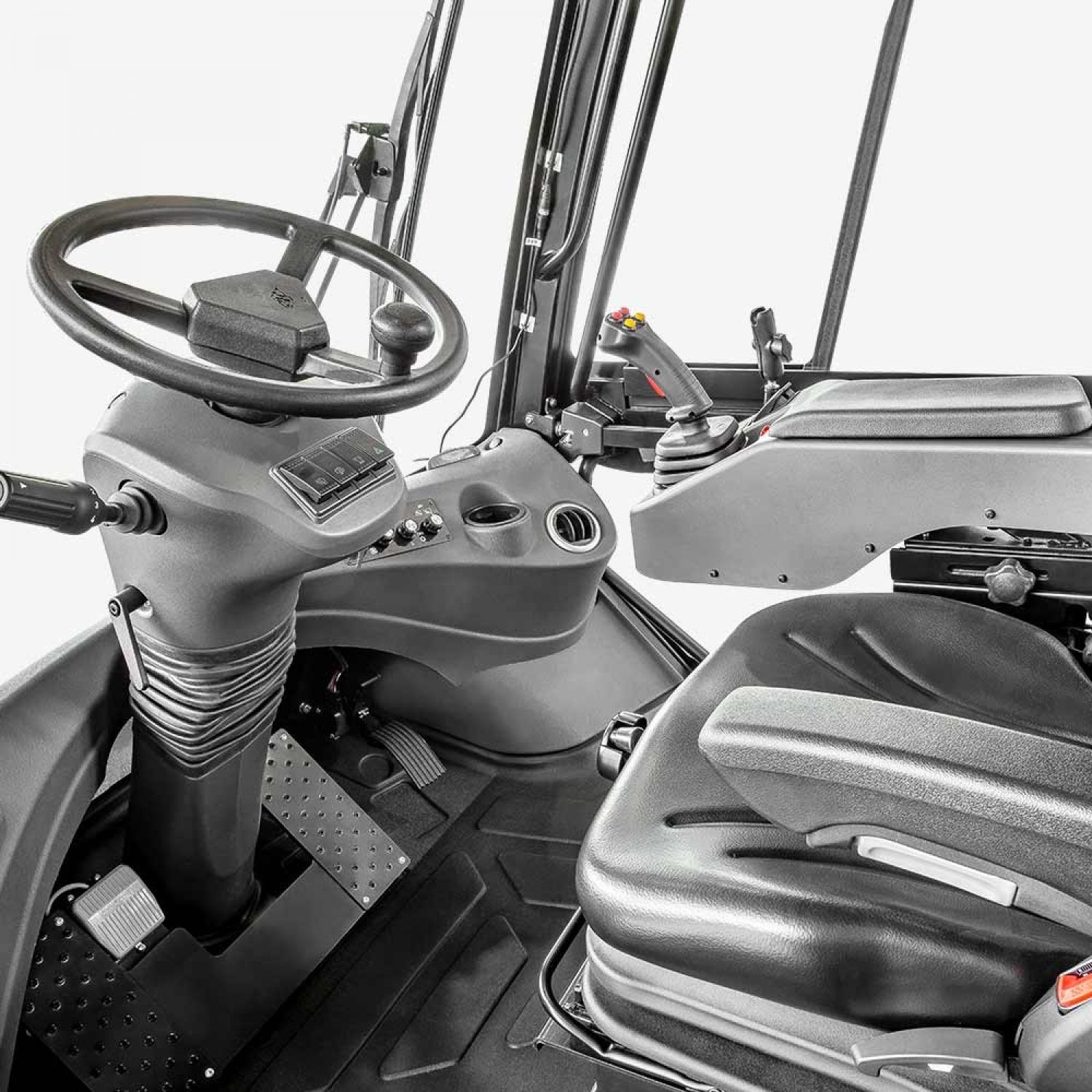

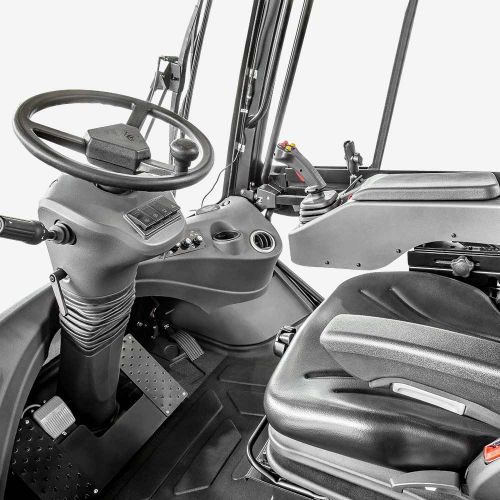

Controls:
Electric proportional control, throttle control, vertical lift control, intelligent cooling fan control, and torque modulation provide effective control.

Powerful powertrain:
The high-torque Cummins QSM1 engine delivers high performance and fuel efficiency.
Equipped with diagnostics and fault protection features.
Meets high emission standards: EPA 3, China Stage III.

Main technical specifications:
Model: X-Series Diesel Reachstacker, 45-ton lifting capacity

Front axle: KESSLER

Engine: Cummins QSM1

Rear axle: DANA36000

Spreader: ELME817

Crane weight: 72.2 t

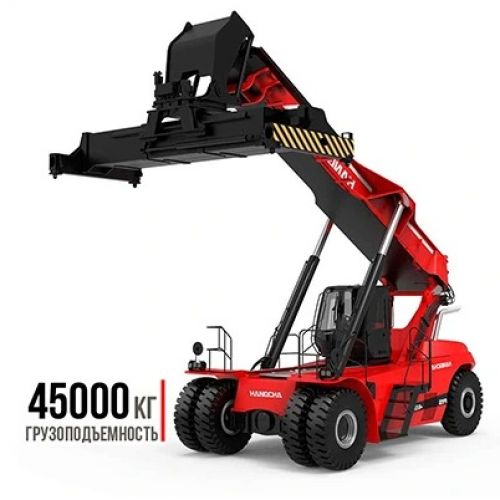

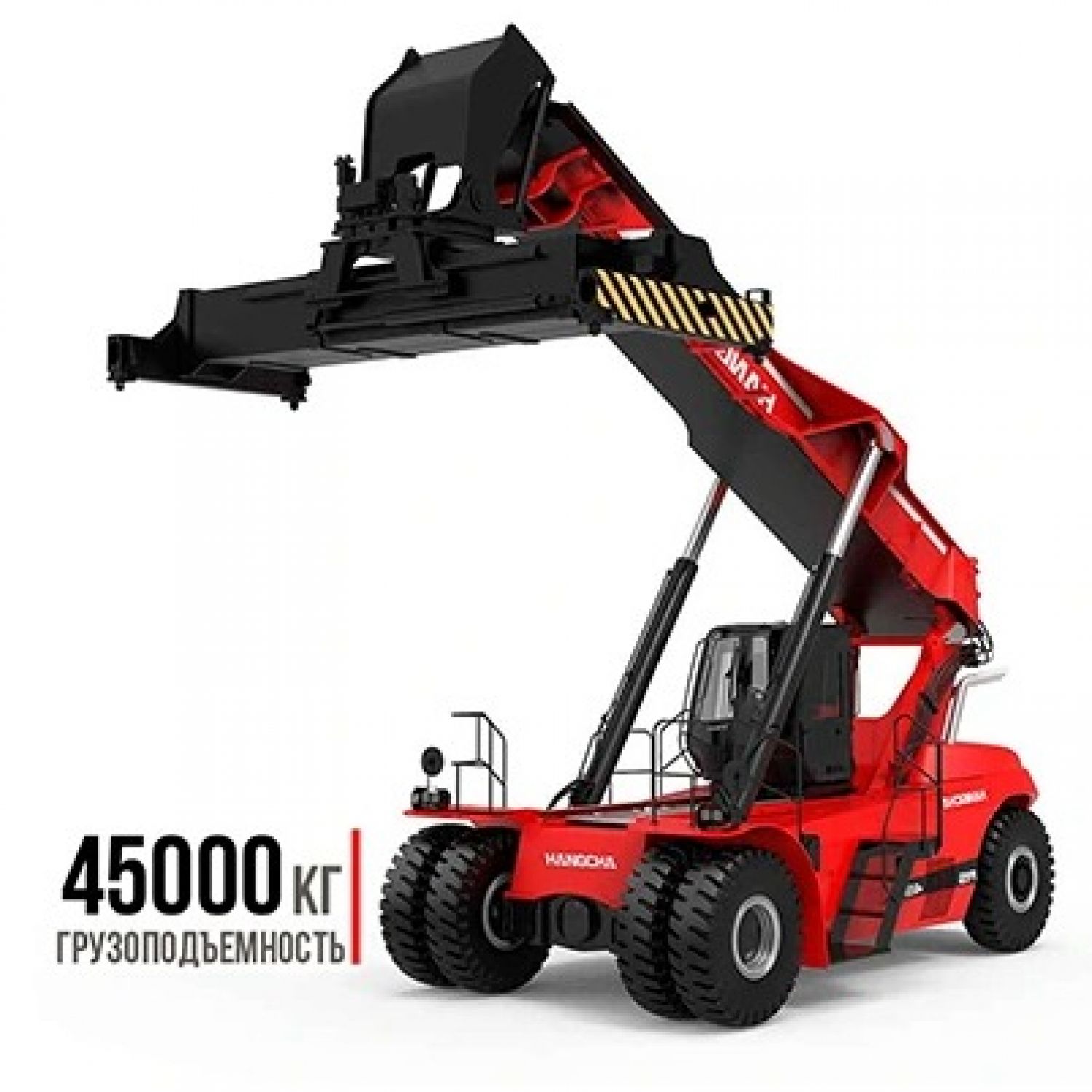

Max. lifting capacity: 45 t

Tires (front/rear): 18.00-25-40PR

Wheelbase: 6000 mm

Max. Lifting height: 15,120 mm

Turning radius: 8,100 mm

Hydraulic pump: Parker and DANFOSS

Additional options:

Double spreader and lock guards

Emergency descent

Lock turn counter

Spreader anti-sway system

2 spreader locks

Tool kit

Pneumatic tires

Fully hydraulic power steering

Extended exhaust pipe

Lockable fuel filler cap

Air pre-cleaner

Drawbar pin

Rearview mirrors (left and right)

Separate brake fluid reservoir

Adjustable steering column

Adjustable armrest

Variable hydraulic pump system

Proportional control of work functions

Increased lifting speed with light loads

Operator presence system (OPS) with horn

LCD display

Lift height indicator

Main power switch

Emergency power switch

24V sealed lead-acid battery

Reverse horn

High-frequency horn

LED lighting throughout the vehicle:

4 front fender work lights

4 boom work lights

2 rear work lights

Reverse sensor

Rearview camera

Automatic fire suppression system

Weight indicator on display

Flashing beacon (non-rotating) with control button

On-board diagnostic system

Vehicle control unit (VCU)

Lock button

Central lighting control panel

Engine malfunction indicator

Low engine oil pressure indicator

Closed air filter indicator

Coolant temperature indicator Fluids

Hour meter

Battery charge indicator

Low hydraulic pressure warning

Hydraulic filter warning

Parking brake indicator

Maintenance indicator

Automatic throttle control (lift/tilt/spreader)

Climate control system (air conditioning + heater)

Radio

Sun visor

USB charging port

Coat hook

Reading light

Fan

Rolling cab

Overload protection system
